Hanna HI2003 edge™ - Conductivity/TDS/Salinity Meter

Hanna HI2003 edge™ – Conductivity/TDS/Salinity Meter

  • Probe potensiometri 4-ring – mencakup semua rentang dari 0,00µS / cm hingga 500 mS / cm (EC absolut)
  • Akurasi – ± 1% dari bacaan (± 0,05µS / cm atau 1 digit, mana saja yang lebih besar)
  • Kalibrasi – offset (0 µS / cm) dan kalibrasi faktor sel, pilihan 5 standar
  • Pemilihan rentang otomatis atau manual
  • EC, TDS dan mode membaca Salinitas
  • Kompensasi suhu – otomatis, NoTC (mutlak)
  • Data GLP – merekam tanggal, waktu, offset, dan nilai konstanta sel (K)
  • Faktor konversi EC ke TDS yang dapat disesuaikan



Category: Tags: ,

Description

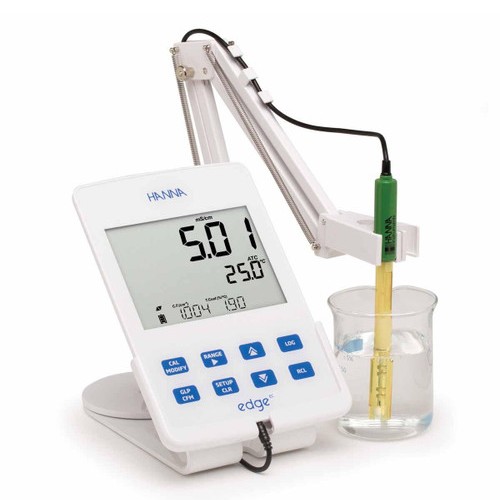

Hanna HI2003 edge™ – Conductivity/TDS/Salinity Meter adalah meteran tunggal yang dapat mengukur Konduktivitas, TDS, dan Salinitas dan sangat mudah digunakan.

  • edge® EC/TDS/Salinity menggunakan teknologi probe konduktivitas empat cincin yang memungkinkan pengguna mengukur sampel dari konduktivitas sangat rendah hingga konduktivitas sangat tinggi.
  • edge® dilengkapi keypad sentuh kapasitif yang memberikan tampilan khas dan modern. Keypadnya cukup sensitif untuk digunakan dengan sarung tangan laboratorium dan memiliki respon yang cepat.
  • edge® dilengkapi layar LCD 5,5” yang dapat Anda lihat dengan jelas dari jarak lebih dari 5 meter. Layar besar dan sudut pandang lebar 150° menjadikannya salah satu LCD yang paling mudah dibaca di industri.

Specifications Hanna HI2003 edge™ – Conductivity/TDS/Salinity Meter

EC Range 0.00 to 29.99 ?S/cm, 30.0 to 299.9 ?S/cm, 300 to 2999 ?S/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)**
Resolution 0.01 ?S/cm, 0.1 ?S/cm, 1 ?S/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy (@25ºC/77ºF) ±1% of reading (±0.05 ?S/cm or 1 digit, whichever is greater)
Calibration 1 point offset calibration (0.00 ?S/cm in air), 1 point slope calibration in EC standard 84 ?S/cm, 1413 ?S/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm
TDS Range 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**
Resolution 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
Accuracy (@25ºC/77ºF) ±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
Calibration Through EC calibration
TDS Factor 0.40 to 0.80 (default value is 0.50)
Salinity Range 0.0 to 400.0% NaCl, 2.00 to 42.00 PSU, 0.0 to 80.0 g/L*
Resolution 0.1% NaCl, 0.01 PSU, 0.01 g/L
Accuracy (@25ºC/77ºF) ±1% of reading
Temperature Range  -20.0 to 120.0 ºC, -4.0 to 248.0 °F
Resolution 0.1 °C, 0.1 °F
Accuracy ±0.5 °C, ±0.9 °F
Additional
Specifications		 Probe HI763100 digital four-ring conductivity probe with 3.5 mm (1/8“) connector and 1m (3.3′) cable
Logging up to 1000 (400 for basic mode) records organized in: manual log-on-demand (max. 200 logs),
manual log-on-stability* (max. 200 logs), interval logging† (max. 600 samples; 100 lots)
Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage
Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing
Power Supply 5 VDC adapter (included)
Battery Type/Life Built-in rechargeable battery with up to 8 hours of continuous use
Dimensions 202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight 250 g (8.82 oz)
