Description

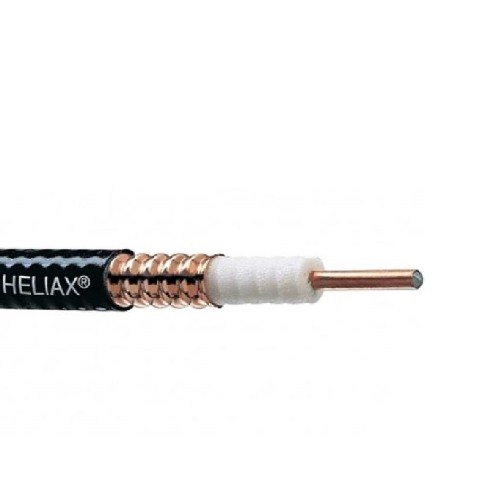

Kabel Heliax Andrew LDF1-50A merupakan kabel coaxial dengan ukuran 1/4 inci dan bahan dielektrik busa polietilena (foam PE).
Andrew LFD1 adalah kabel koaksial berkualitas tinggi yang dikenal untuk jaringan telekomunikasi modern, terutama yang menggunakan frekuensi radio (RF). Kabel ini dikenal sebagai bagian dari CommScope, sering digunakan dalam pembangunan infrastruktur jaringan seperti BTS (Base Transceiver Station), repeater, dan jaringan microwave.
Fitur Utama
- Dielektrik busa kepadatan rendah
- 50Ω impedansi
- Konduktor luar tembaga bergelombang
- Konduktor dalam CCA.
Penggunaan
- Kabel koaksial 50Ω dielektrik busa fleksibel Andrew Commscope adalah kabel pengumpan berkinerja sangat tinggi
- Merek Heliax Andrew mewakili warisan inovasi teknologi.
Spesifikasi Kabel Heliax Andrew LDF1-50A
| Product classification | |||||||
| Product Type | Coaxial wireless cable | ||||||
| Product Brand | HELIAX® | ||||||
| Product Series | LDF1-50 | MLOC | ||||||
| General specifications | |||||||
| Product Number | 520100002/00 | SZ520100002/00 | ||||||
| Flexibility | Standard | ||||||
| Jacket Color | Black | ||||||
| Performance Note | Attenuation values typical, guaranteed within 5% | ||||||
| Dimensions | |||||||
| Diameter Over Dielectric | 6.858 mm | 0.27 in | ||||||
| Diameter Over Jacket | 8.763 mm | 0.345 in | ||||||
| Inner Conductor OD | 2.54 mm | 0.1 in | ||||||
| Outer Conductor OD | 7.874 mm | 0.31 in | ||||||
| Nominal Size | 1/4 in | ||||||
| Electrical specifications | |||||||
| Cable Impedance | 50 ohm ±1 ohm | ||||||
| Capacitance | 76.8 pF/m | 23.409 pF/ft | ||||||
| dc Resistance, Inner Conductor | 5.151 ohms/km | 1.57 ohms/kft | ||||||
| dc Resistance, Outer Conductor | 4.003 ohms/km | 1.22 ohms/kft | ||||||
| dc Test Voltage | 2200 V | ||||||
| Inductance | 0.194 µH/m | 0.059 µH/ft | ||||||
| Insulation Resistance | 100000 MOhms-km | ||||||
| Jacket Spark Test Voltage (rms) | 5000 V | ||||||
| Operating Frequency Band | 1 – 15800 MHz | ||||||
| Peak Power | 12.1 kW | ||||||
| Velocity | 86% | ||||||
| Return loss/vswr | |||||||
| Frequency band | Vswr | Return loss (db) | Vswr, typical | Return loss, typical (db) |
|||
| 806–960 MHz | 1.150 | 23.13 | |||||
| 1700–2000 MHz | 1.150 | 23.13 | |||||
| 4000–6000 MHz | 1.433 | 14.99 | 1.290 | 18.00 | |||
| Material specifications | |||||||
| Dielectric Material | Foam PE | ||||||
| Jacket Material | PE | ||||||
| Inner Conductor Material | Copper-clad aluminum wire | ||||||
| Outer Conductor Material | Corrugated copper | ||||||
| Mechanical specifications | |||||||
| Minimum Bend Radius, multiple Bends | 76.2 mm | 3 in | ||||||
| Minimum Bend Radius, Single Bend | 38.1 mm | 1.5 in | ||||||
| Number of Bends, minimum | 15 | ||||||
| Number of Bends, typical | 30 | ||||||
| Tensile Strength | 91 kg | 200.62 lb | ||||||
| Bending Moment | 1.4 N-m | 12.391 in lb | ||||||
| Flat Plate Crush Strength | 1.4 kg/mm | 78.396 lb/in | ||||||
| Environmental specifications | |||||||
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) | ||||||
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) | ||||||
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) | ||||||
| Attenuation, Ambient Temperature | 20 °C | 68 °F | ||||||
| Average Power, Ambient Temperature | 40 °C | 104 °F | ||||||
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F | ||||||
| Packaging and weights | |||||||
| Cable weight | 0.09 kg/m | 0.060 lb/ft | ||||||
