Description

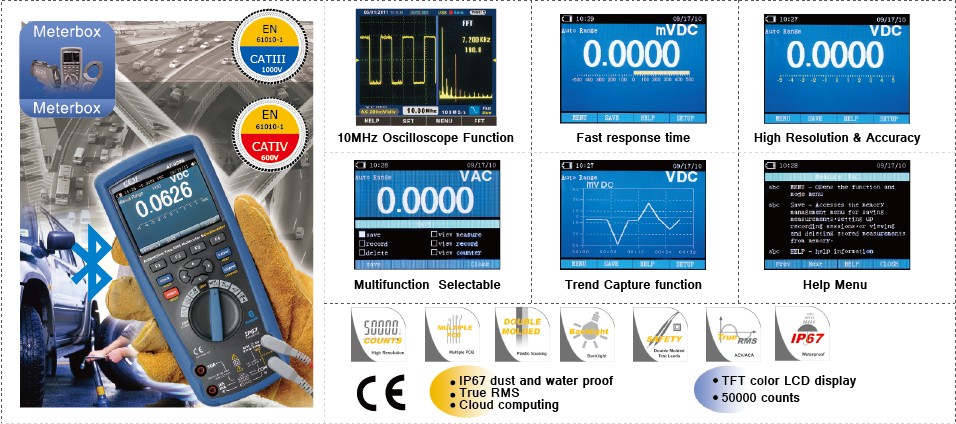

CEM AT-9996 True RMS Digital Multimeter with Oscilloscope dengan layar LCD warna TFT, menyediakan waktu pengambilan sampel konversi A/D yang cepat, akurasi tinggi, datalogging bawaan, dan fitur Trend Capture. Pengukuran RPM untuk mesin otomotif dengan 2 sampai 10 Silinder menggunakan Pick-up induktif. 14 Fungsi termasuk DCV, ACV, DCA, ACA, Resistansi, RPM (Tach), Sudut diam, Siklus tugas, Frekuensi, Suhu (ºC/ºF), Kapasitansi, Kontinuitas, dan Pemeriksaan Dioda.
Features
- Large 50,000 count 320 x 240 TFT color LCD display
- 10MHz/50MS/s bandwidth/Real time sample rate
- Logging function with TrendCapture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz/100kHz bandwidth (voltage/current)
- AC, AC+DC true-RMS measurements
- Records events and trends
- Saves measurements
- A/D convert fast sampling time
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- Motor winding and low ohm (50Ω) measurement range
- Low pass filter
- IP Rating 67
- Compatible with AC/DC clamp-on adaptor with bluetooth at mV range.
Specifications CEM AT-9996 True RMS Digital Multimeter with Oscilloscope
| Oscilloscope Functions | ||||||
| Display Size | 3.5″ color LCD; 320 x 240 pixels | |||||
| Bandwidth | 10MHz | |||||
| Real time sample rate | 50MS/s | |||||
| Risetime | 17.5ns | |||||
| Glitch Capture | 50ns | |||||
| Vertical Sensitivity | 20mV to 100V/div | |||||
| Vertical Resolution | 8 bits | |||||
| Trigger Mode | Ferr Run, Single Shot, Edge | |||||
| Trigger Source | CH1 | |||||
| Trigger Coupling | AC/DC | |||||
| Input impedance | 1MΩ/20pF | |||||
| Max Input Volatge | 400V(peak) | |||||
| Cursor Measurement | Voltage and time | |||||
| Automotive True RMS Multimeter Functions | ||||||
| Function | Maximum | Max, resolution | Accuracy | |||
| Voltage DC | 1000V | 1μV | ±(0.025% + 5) | |||
| Voltage AC | 1000V | 1μV | ±(0.4% + 40) | |||
| Current DC | 10A | 0.01μA | ±(0.15% + 2) | |||
| Current AC | 10A | 0.01μA | ±(0.07% + 5) | |||
| Temperature | -50ºC to 1350ºC | 0.1ºC | ±(1.0% + 1ºC) | |||
| Resistance | 50MΩ | 0.1Ω | ±(0.05% + 2) | |||
| Capacitance | 10mF | 0.001nS | ±(1.0% + 5) | |||
| Frequency | 10MHz | 0.01Hz | ±(0.005% + 1) | |||
| RPM(Tach) | 600 ~ 4000RPM; | ±(2.5%+2d) | ||||
| 600 ~ 12000RPM(x 10RPM) | ||||||
| Dwell Angle | 1CYL, 2CYL, 3CYL, 4CYL, 5CYL, | ±(2.5%+2d) | ||||
| 6CYL, 8CYL, 10CYL, 12CYL | ||||||
| Duty Cycle | 0.1~99.9% | ±(1.5%+2d) | ||||
| Period | 0.1~20mS | ±(3.0%+5d) | ||||
| Pulse Width | 0.1~10mS | ±(3.0%+5d) | ||||
| Diode and Continuity | Yes | |||||
| PC Interface | Bluetooth | |||||
| Power Supply | 6 hours Li-ion rechargeable battery;AC Adaptor/charger | |||||
Accessories:
- Test leads, Li-ion batteries, Type K temperature probe, Software, gift box with carrying case.
CEM AT-9996 True RMS Digital Multimeter with Oscilloscope >>>> Spec sheet (PDF)
