Description
Fusion Splicer Comway C10S adalah sistem penyelarasan inti dengan 6 motor yang ditujukan untuk Konstruksi 5G dan mendukung penyambungan serat G.654E
Fitur Comway C10S
- Ditujukan untuk Konstruksi 5G: Mendukung Penyambungan Serat G.654E
- Multifungsi: Pelebur Ujung Serat & Penyambung Fusi
- Mesin Tulang Punggung Profesional: Penyelarasan Inti 6 Motor
- Presisi Sangat Tinggi: Tampilan Sumbu Tunggal 750X (Perbesar ke Atas)
- Lebih Efisien: Waktu Penyambungan 5 detik, 8 detik. Waktu Pemanasan
- Desain Tahan Lama: Tahan Air, Tahan Debu, Anti Guncangan
- Anti Pencurian & Keamanan: Loker Jarak Jauh & GPS (Opsi)

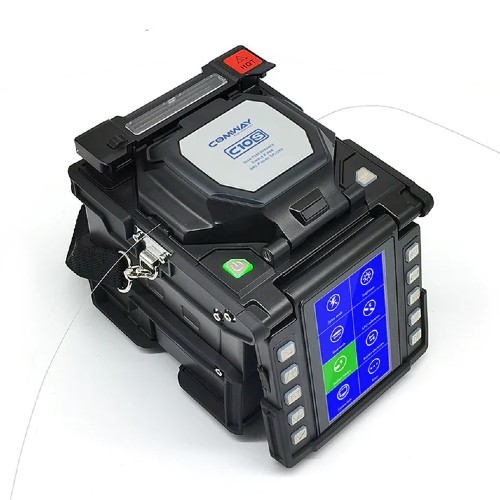

Splicer Comway C10S V2
Spesifikasi Fusion Splicer Comway C10S
| Size & Weight | D156 x W135 x H149(mm); 2.0kg (2.5kg with battery) | |
| Fiber Alignment | 6 Motors Core Alignment | |
| Fiber Type | SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) | |
| Splice Mode | Single fiber | |
| Fiber Diameter | Cladding dia. 80~150μm; Coating dia. 100~3000μm | |
| Cleave Length | 250μm cladding dia. 8~16mm; Over 250μm cladding dia. 16mm | |
| Splicing Programs | Max. 200 | |
| Splicing Time | 5 Sec. [SM Fast] program; 10 Sec. [SM G652] program | |
| Heating Programs | Max. 30 | |
| Heating Time | Adjustable, 8 Sec. with micro sleeves 12 Sec. with slim 60mm and 40mm sleeves | |
| Splice Progector | 10~60mm | |
| Splice Image Capture | Max. 800 | |
| Splice Data Storage | Max. 20000 | |
| Splice Loss | SM:Â 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB | |
| Regurn Loss | 60dB | |
| Loss Estimation | Yes | |
| Operation Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10~+50ºC; Wind velocity: up to 15m/s | |
| Storage Condition | Humidity: 0~95%; Temperature: -40~+80ºC (battery -20~+40ºC) | |
| Tension | 1.96~2.25N | |
| Screen | 4.3 inch high resolution display | |
| Fiber Magnification | X/Y: 750X(Zoom Up); X&Y:Â 300X | |
| Port | High speed USB | |
| Electrode life | 5000 ARC discharges | |
| Power supply | AC100-240V, 50/60Hz | |
| Battery Parameters | 5600mAh high capacity battery, over 350 circles splicing and heating |
Package Includes:
- Comway C10S
- User Guide
- Stripper
- Extra Electrodes
- High Precision Cleaver C109
- Carrying Case
- High Capacity Battery
- AC Adapter
- Cooling Tray
- USB Cable
- DC Charging Cable
- AC Adapter Cable
- Hand Strap
- Shoulder Strap
- Alcohol Bottle
