Description

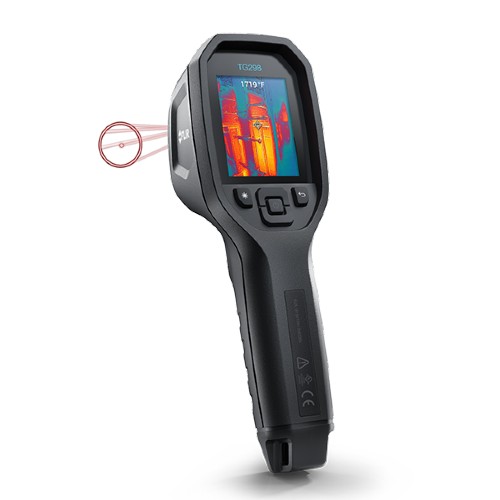

Flir TG298 Thermal Imaging Camera adalah alat pengukur suhu yang akurat dengan kemampuan untuk menghasilkan gambar hingga 1080°C (1976°F). TG298 dipatenkan untuk meningkatkan kejernihan gambar dengan menonjolkan detail visual adegan pada gambar termal penuh, dan resolusi super memungkinkan Anda untuk meningkatkan skala gambar dari 160 × 120 menjadi 320 × 240 untuk detail yang lebih unggul.

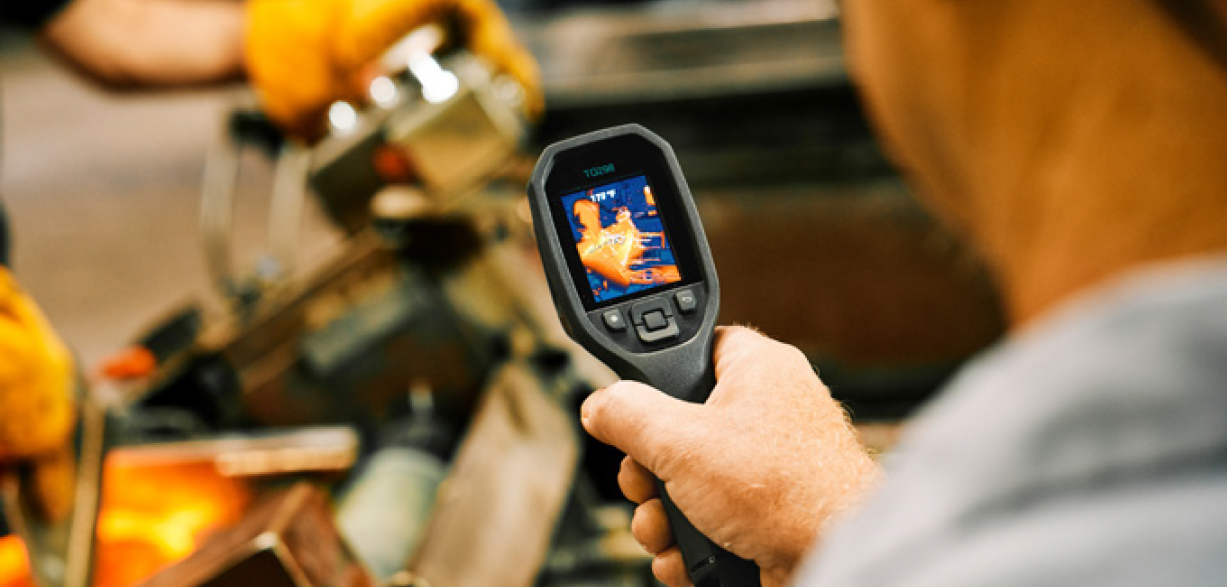

Flir TG298 Thermal Camera
- Identifikasi Masalah dengan Cepat:
Ukur suhu secara akurat hingga 1080°C (1976°F) dengan rasio ukuran titik 30:1 dan penunjuk laser bullseye. - Gambar dan performa berkualitas tinggi:
Diagnosa masalah dengan cepat menggunakan peningkatan gambar MSX yang dipatenkan, Flir memungkinkan Anda meningkatkan resolusi gambar hingga 320 × 240 (76.800 piksel). - Bekerja dengan Percaya Diri di Lingkungan yang Keras:
Dengan peringkat IP54 dilengkapi dengan lampu kerja LED terintegrasi untuk visibilitas yang lebih baik di area gelap atau kurang cahaya, dan peringkat uji jatuh 2 m untuk daya tahan.
Specifications Flir TG298 Thermal Imaging Camera
| Highlighted | ||
| IR Resolution | 160 × 120 | |
| Super Resolution 320 × 240 | ||
| Thermal Sensitivity/NETD | <70 mK | |
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F) | |
| ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F) | ||
| Field of view (FOV) | 57° × 44° | |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) | |
| Visual with temperature reading | ||
| Display | 320 × 240, 2.4 in color LCD | |
| Storage Media | 8 GB | |
| Imaging & Optical | ||
| Built-in Digital Camera | Yes | |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava | |
| Detector Pitch | 12 µm | |
| Detector Type | Focal plane array (FPA), uncooled microbolometer | |
| Digital image enhancement | Yes | |
| Field of view (FOV) | 57° × 44° | |
| Focus | Focus free | |
| Image Frequency | 8.7 Hz | |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) | |
| Visual with temperature reading | ||
| IR Resolution | 160 × 120 | |
| Super Resolution 320 × 240 | ||
| Laser | Class 1 laser indicates the temperature measurement area; button-activated | |
| Minimum Focus Distance | 0.3 m (0.98 ft) | |
| Minimum Measurement Distance | 0.26 m (0.85 ft) | |
| Non-radiometric IR video recording | Yes | |
| Spectral Range | 7.5 – 14 µm | |
| Thermal Sensitivity/NETD | <70 mK | |
| Measurement & Analysis | ||
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F) | |
| ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F) | ||
| Camera size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) | |
| Camera weight incl battery | 0.394 kg (13.9 oz) | |
| Center spot | Yes | |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 | |
| Object Temperature Range | −25°C to 1080°C (−13°F to 1976°F) | |
| Spot Meter | Center spot on/off | |
| User Interface | ||
| Display | 320 × 240, 2.4 in color LCD | |
| Communication & Data Storage | ||
| Image Storage Capacity | 8 GB | |
| Interface | USB 2.0, Bluetooth | |
| Memory Type | Internal | |
| METERLiNK | Yes | |
| Saved image format | JPEG with spot temperature data | |
| Storage Media | 8 GB | |
| Time Lapse | Yes | |
| USB | USB Type-C: data transfer/power | |
| USB – Standard | USB 2.0 High Speed | |
| Power | ||
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on | |
| Battery Type | Rechargeable Li ion battery | |
| Battery voltage | 3.7 V | |
| Charging system | Battery is charged inside the camera | |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) | |
| Charging Time | 3 hours to 90%, 4 hours to 100% | |
| Environmental & Certifications | ||
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan | |
| Drop test | Designed for 2 m (6.6 ft) | |
| EMC | EN 61000-6-3 | |
| EN 61000-6-2 | ||
| FCC 47 CFR Part 15 Class B | ||
| Encapsulation | IP 54 (IEC60529) | |
| Humidity (Operating and Storage) | 0 to 90% RH (0 to 37°C (32 to 98.6°F)), 0 to 65% RH (37 to 45°C (98.6 to 113°F)), 0 to 45% RH (45 to 55°C (113 to 131°F)) | |
| Operating Temperature Range | −10°C to 45°C (14°F to 113°F) | |
| Radio Spectrum | ETSI EN 300 328 | |
| FCC Part 15.249 | ||
| RSS-247 Issue 2 | ||
| EN 301 489-1:2011 | ||
| EN 301 489-17:2009 | ||
| Safety | CE/CB/EN61010/UL | |
| Shock | 25 g (IEC 60068-2-27) | |
| Storage Temperature Range | −30°C to 55°C (−22°F to 131°F) | |
| Tripod Mounting | 1/4 in.-20 on handle bottom | |
| Vibration | 2 g (IEC 60068-2-6) | |
| Warranty | FLIR 2-10 warranty | |
| General | ||
Package Includes: |
Flir TG298 | |
| Wrist Strap Lanyard | ||
| Pouch | ||
| USB Type-C cable | ||
| Printed Documentation | ||
