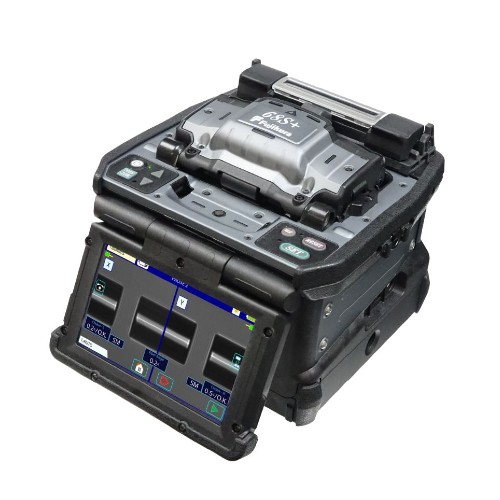

Fujikura 68S+ Core Alignment

Description

Fusion Splicer Fujikura 68S+ adalah perangkat penyambung serat optik yang menggabungkan presisi tinggi dengan kecepatan kerja optimal. Menggunakan teknologi core alignment yang canggih, 68S+ memastikan sambungan serat yang akurat dan minim loss.

68S+ dilengkapi dengan layar sentuh LCD, sistem perlindungan otomatis, serta kemampuan pemanasan cepat, alat ini ideal untuk kebutuhan instalasi dan pemeliharaan jaringan optik seperti FTTx, backbone, dan distribusi. Desainnya yang tangguh dan portabel menjadikan Fujikura 68S+ solusi terbaik di segala kondisi lapangan.

Fujikura 68S+ Core Alignment

1. Teknologi Penyelarasan Inti
Fusion splicer 68S+ memiliki lensa presisi tinggi yang memberikan penyelarasan inti ke inti yang akurat terlepas dari kesalahan konsentrisitas inti-kelongsong. Lensa ini juga memungkinkan splicer untuk membedakan berbagai jenis serat.

2. Teknologi Pemrosesan Gambar Canggih
68S memiliki teknologi pemrosesan gambar canggih yang menganalisis profil citra serat sebagai pola kecerahan. 68S+ menemukan posisi inti yang sebenarnya dan mencapai kehilangan sambungan yang lebih rendah secara konsisten.

3. Fungsi Diskriminasi Serat
Fusion splicer 68S+ secara otomatis mengidentifikasi parameter pelepasan busur optimal sesuai dengan jenis serat.

Spesifikasi Fusion Splicer Fujikura 68S+

Fiber alignment method				Active core alignment
Fiber count can be spliced				Single fiber
Applicable fiber		Fiber type		Single mode optical fiber
				Multi mode optical fiber
		Cladding dia.		80 to 150μm
Applicable coating		Sheath clamp		Coating dia. : Max. 3,000μm
				Cleave length : 5 to 16mm *1
Fiber splice performance		Splice loss *2		ITU-T G.652 : Avg. 0.02dB
				ITU-T G.651 : Avg. 0.01dB
				ITU-T G.653 : Avg. 0.04dB
				ITU-T G.654 : Avg. 0.04dB
				ITU-T G.655 : Avg. 0.04dB
				ITU-T G.657 : Avg. 0.02dB
		Return loss		>> 60dB
		Splice time *3		SM FAST mode : Avg. 7sec.
				AUTO mode : Avg. 14 to 16sec.
Applicable protection sleeve		Sleeve type		Heat shrinkable sleeve
		Sleeve length		Max. 66mm
		Sleeve dia.		Max.4.7mm before shrinking
Sleeve heat performance		Heat time *4		60mm slim mode : Avg. 14 sec.
				60mm mode : Avg. 25sec.
Fiber tensile test force				Approx. 2.0N
Electrode life *5				Approx. 5,000 splices
Physical description		Dimensions W		Approx.170mm without projection
		Dimensions D		Approx.173mm without projection
		Dimensions H		Approx.150mm without projection
		Weight		Approx. 2.7kg including battery
Environmental condition		Temperature		Operate : -10 to 50 degreeC
				Storage : -40 to 80 degreeC
		Humidity		Operate : 0 to 95%RH non-condensing
				Storage : 0 to 95%RH non-condensing
		Altitude		Max. 5,000m
AC adaptor		Input		AC100 to 240V, 50/60Hz, Max. 1.5A
Battery pack		Type		Rechargeable Lithium Ion
		Output		Approx. DC14.4V / 6,380mAh
		Capacity *6		Approx. 300 splice and heat cycles
		Temperature		Recharge : 0 to 40 degreeC
				Storage : -20 to 30 degreeC
		Battery life *7		Approx. 500 recharge cycles
Display		LCD monitor		TFT 5 inches with touch screen
		Magnification		200 to 320x (X/Y or X&Y simultaneously)
Illumination		V-grooves		LED lamp
Interface		PC		USB2.0 Mini B type
		External LED lamp		USB2.0 A type Approx. DC5V, 500mA
		Ribbon Stripper		Mini DIN 6pin DC12V, Max. 1A
Data storage		Splice mode		100 splice modes
		Heat mode		30 heat modes
		Splice result		20,000 splices
		Splice image		100 images
Resistance features*8		Drop		76cm (30inch), 6 directions
		Dust		IPX2 when closing wind protector
		Rain		IP5X when closing wind protector
Screw hole for tripod				1/4-20UNC
Other features		Automatic functions		Splice mode select by fiber type analysis
				Discharge power calibration
				Wind protector : open and close
				Sheath clamp : open
				Splice : Auto start
				Heater : Auto start
				Heater lid : Auto close
		Reference guide		Video and PDF file stored in splicer
		Sheath clamp		Easy sleeve positioning clamp
		Electrode		Replaceable without tool

Standard Package:

1. Fusion Splicer Fujikura 68S+
2. Battery Pack BTR-15
3. AC Adapter ADC-20 1pc
4. AC Power Cord ACC-14, 15, 16 17 or 18
5. USB Cable USB-01
6. Fusion Splicer Strap ST-02
7. Electrodes (spare) ELCT2-16B
8. Fiber Holder Set Plate SP-03
9. Carrying Case CC-38
10. Tripod Screw TS-03 2pcs
11. Carrying Case Strap ST-03
12. Alcohol Dispenser AP-02
13. Quick Reference Guide QRG-05-E
14. Single Fiber Stripper SS03 or SS01
15. Optical Fiber Cleaver CT08
    1. Fiber Setting Plate AD-10-M24
    2. Case (for Cleaver) CC-34
    3. Hexagonal Wrench HEX-01
