Fujikura 99S Core Alignment

Description

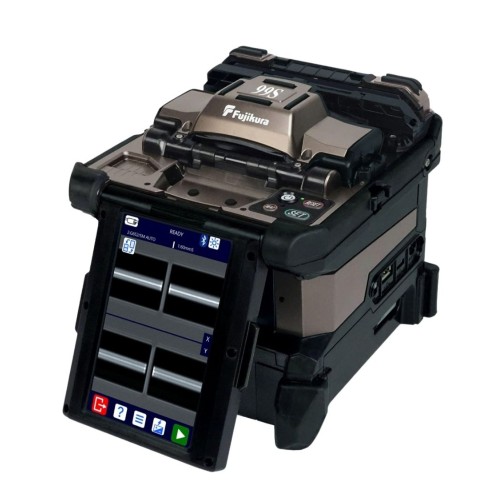

Fusion Splicer Fujikura 99S
Jenis serat optik dan kondisi ujung elektroda dianalisis secara real-time, dan kondisi busur secara otomatis disesuaikan untuk kinerja optimal. Ini memastikan kehilangan sambungan yang rendah secara konsisten.

Kondisi mata pisau dikelola secara real-time melalui Bluetooth.

Ketika posisi aus terdeteksi, mata pisau secara otomatis berputar ke posisi berikutnya, memungkinkan pekerjaan dilakukan pada posisi optimal.

Fitur Splicer Fujikura 99S

• 20% Faster Operation
  Proses splicing lebih cepat dibanding model sebelumnya, meningkatkan efisiensi kerja lapangan.

• Core Alignment Technology
  Presisi tinggi untuk hasil sambungan fiber yang konsisten dan low loss.

• Simultaneous Fiber Preparation
  Stripping, cleaving, dan setting dua fiber dapat dilakukan secara bersamaan.

• Finger Placement Guide
  Panduan V-shaped memudahkan dan mempercepat penempatan fiber secara akurat.

• Automatic Wind Protector
  Penutup otomatis menutup dan membuka sendiri selama proses splicing.

• Expanded Fiber Setting Range
  Tetap bisa splice meski ujung fiber melewati posisi elektroda.

• Adjustable Lever Opening Angles
  Sudut tuas dapat diatur, nyaman digunakan di meja maupun handheld.

• CT60 Optical Fiber Cleaver
  Cleaver presisi tinggi dengan 28 blade positions, tanpa perlu setelan tinggi pisau.

• Smartphone App Connectivity (Splice+)
  Monitoring hasil splice, lokasi GPS, dan fitur keamanan anti-theft.

• Splice Coach Function
  Panduan step-by-step langsung di layar untuk meminimalkan error.

• Flexible Power Options
  Mendukung DC charge, USB Power Delivery, dan baterai portable.

Spesifikasi Fusion Splicer Fujikura 99S

Fiber alignment method				Active core alignment
Fiber count can be spliced				Single fiber
Applicable fiber		Fiber type		Single mode optical fiber
				Multi mode optical fiber
		Cladding dia.		80 to 150μm
Applicable coating		Sheath clamp		Coating dia. : Max. 3000μm
				Cleave length : 5 to 16mm
Fiber splice performance		Splice loss		ITU-T G.652 : Avg. 0.02dB
				ITU-T G.651 : Avg. 0.01dB
				ITU-T G.653 : Avg. 0.04dB
				ITU-T G.654 : Avg. 0.04dB
				ITU-T G.655 : Avg. 0.04dB
				ITU-T G.657 : Avg. 0.02dB
		Splice time		SM FAST mode : Avg. 7 to 9sec.
				SM AUTO mode : Avg. 11 to 13sec.
				AUTO mode : Avg. 14 to 16sec.
Applicable protection sleeve		Type		Heat shrinkable sleeve
		Length		Max. 66mm
		Dia.		Max. 6.0mm before shrinking
Sleeve heat performance		Heat time		60mm slim mode : Avg. 5 to 10sec.
				60mm mode : Avg. 8 to 15sec.
Fiber tensile test force				Approx. 2.0N
Electrode life				Approx. 6000 splices
Physical description		Dimensions  W		Approx.157mm without projection
		Dimensions  D		Approx.178mm without projection
		Dimensions  H		Approx.171mm without projection
		Weight		Approx. 2.7kg including battery
Environmental condition		Temperature		Operate : -10 to 50 °C
				Storage : -40 to 80 °C
		Humidity		Operate : 0 to 95%RH non-condensing
				Storage : 0 to 95%RH non-condensing
		Altitude		Max. 5000m
AC adaptor		Input		AC100 to 240V, 50/60Hz, Max. 1.5A
Battery pack		Type		Rechargeable Lithium Ion
		Output		Approx. DC14.4 V, 6380mAh
		Capacity		Approx. 300 splices and heat cycles
		Temperature		Operate : -10 to 50 °C
				Recharge : 0 to 40 °C
		Battery life		Approx. 500 recharge cycles
Display		LCD monitor		TFT 4.95 inches with touch screen
		Magnification		Approx. 320x
Illumination		V-grooves		LED lamp
Interface		PC		USB2.0 Type-C (USB PD is available)
				* USB3.0 is unavailable for communication
				* Only power receiving function is available for PD
		External		USB2.0 A type
		LED lamp		Approx. DC5V, 500mA
		Ribbon Stripper		Mini DIN 6pin
				DC12V, Max. 1A
		Wireless		Bluetooth 5.2 LE
Data storage		Splice mode		100 splice modes
		Heat mode		30 heat modes
		Splice result		20000 splices
		Splice image		100 images
				1/4-20UNC

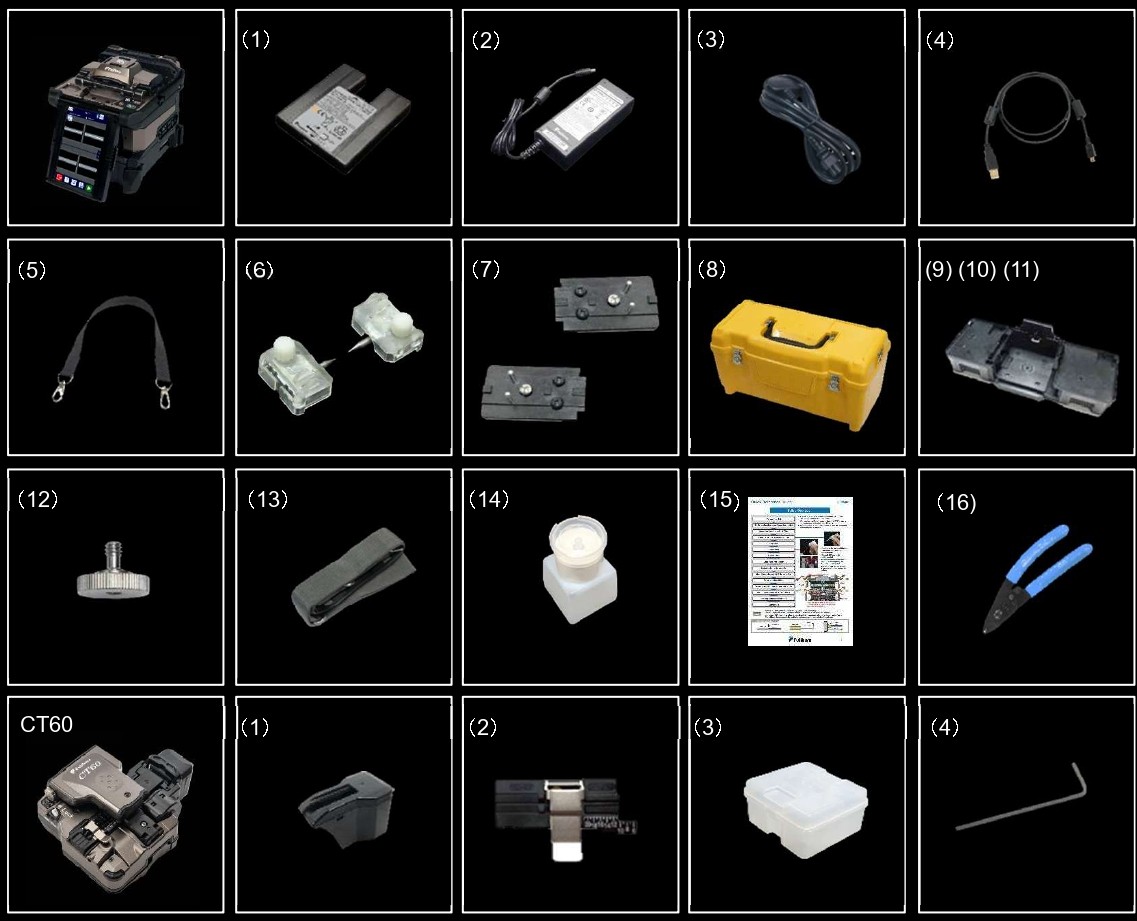

Standard Package: Core Alignment Splicer Fujikura 99S Battery Pack BTR-19 AC Adapter ADC-22 AC Power Cord ACC-19 USB Cable USB-02 Fusion Splicer Strap ST-02 Electrodes (spare) ELCT2-16C Fiber Holder Set Plate SP-05 Carrying Case CC-48 Work Tray Left WT-11L Work Tray Right WT-11R Work Tray J-Plate JP-11 Tripod Screw TS-04A Carrying Case Strap ST-04 Alcohol Dispenser AP-02 Instruction Manual Single Fiber Stripper SS05 Optical Fiber Cleaver CT60 Fiber Scrap Collector FDB-07 Fiber Setting Plate AD-60A Case for Cleaver CC-49 Hexagonal Wrench HEX-01

Core Alignment Fusion Splicer Fujikura 99S ini sering digunakan dalam instalasi jaringan backbone dan akses karena presisinya yang tinggi dan fitur-fitur otomatisnya.
