Description
Fusion Splicer Joinwit JW4109 adalah perangkat presisi yang digunakan untuk menyambungkan dua ujung serat optik (core) secara permanen dengan cara melelehkan atau meleburkan ujung-ujung tersebut menggunakan panas dari busur listrik atau sinar laser.
Splicer Joinwit JW4109 ini sangat krusial dalam infrastruktur telekomunikasi seperti jaringan internet (FTTH), pusat data, dan pemeliharaan kabel optik karena mampu menghasilkan sambungan dengan tingkat kehilangan sinyal (redaman) yang sangat rendah, biasanya di bawah 0,03 dB.
- Alat Penyambungan serat optik
- Memanfaatkan panas untuk meleburkan kedua ujung kabel optik secara bersamaan
- Waktu penyambungan 9 detik
- Waktu pemanasan 30 detik
- Maks. perbesaran serat 350X.
- Display: LCD digital berkualitas tinggi 5 inci
Features Joinwit JW4109
- Used for FTTH and fiber project
- Core to core alignment by PAS technology
- Connecting time 8 seconds and heating time 30 seconds
- With an Ultra large capacity Li battery 7200 mAh
- 380 X or Y display, 250 X and Y display.
- Big amplification and clear core
- 5 inch high quality digital LCD screen
- Three in one kit, single fiber splicing, indoor cable and pigtails
- Large capacity lithium battery 200 times splicing and heating
- Small size and light weight
- Weight 1.98 Kg including battery
- V . type high power automatic heater
Specifications Splicer Joinwit JW4109
| Model | JW4109 | |
| Splicing Type | SM, MM, DS, NZDS | |
| Splicing Loss | 0.02dB(SM)，0.01dB(MM)，0.04dB(DS) | |
| Return Loss | >60dB | |
| Splicing Mode | Manual, Half Auto, Auto | |
| Fiber Alignment | Core to Core Alignment by PAS technology | |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) | |
| Splicing Time | ≤9s | |
| Heat Time | ≤30s | |
| Cleaved Length | 8～16mm | |
| Fiber Image/ Magnification | 350/280 | |
| View Display | 5 inch digital high-quality LCD screen | |
| Tension Test | Standard 2N (option) | |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve | |
| Battery Capacity | 7200mAh, 3 hours charging time ( splicing and charging at same time) | |
| Battery Life | Cycling charge 300-500 times, easy to replace battery | |
| Electrodes Life | 3000, easy to replace electrodes | |
| Power Source | ≤20W | |
| Interface | USB Convenient data download and software update | |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night | |
| Power supply | Built in lithium battery 6800mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A | |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, | |
| Humidity:0～95%RH (No dew) | ||
| Weight (including battery) | 1.98 KG (including battery) | |
| Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) | |

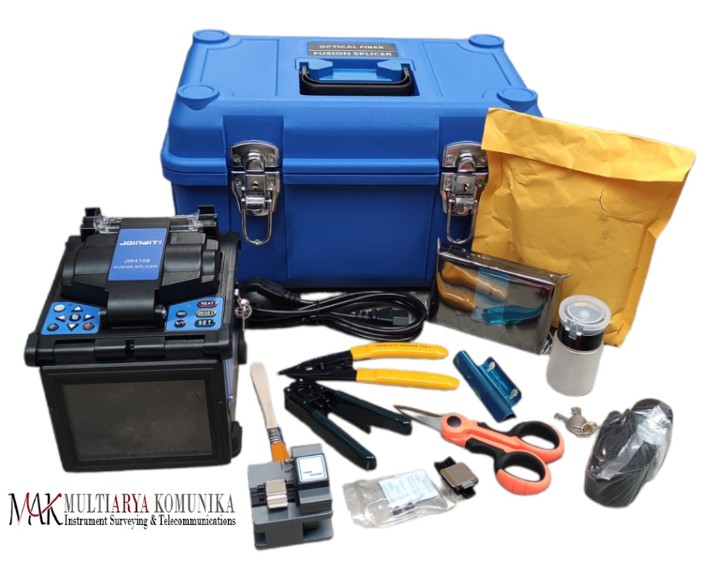

Standard Package |
 |
Joinwit JW4109 merupakan perangkat fusion splicer presisi tinggi yang digunakan untuk menyambungkan kabel serat optik (fiber optic) dengan metode pengelasan busur listrik.
