Description

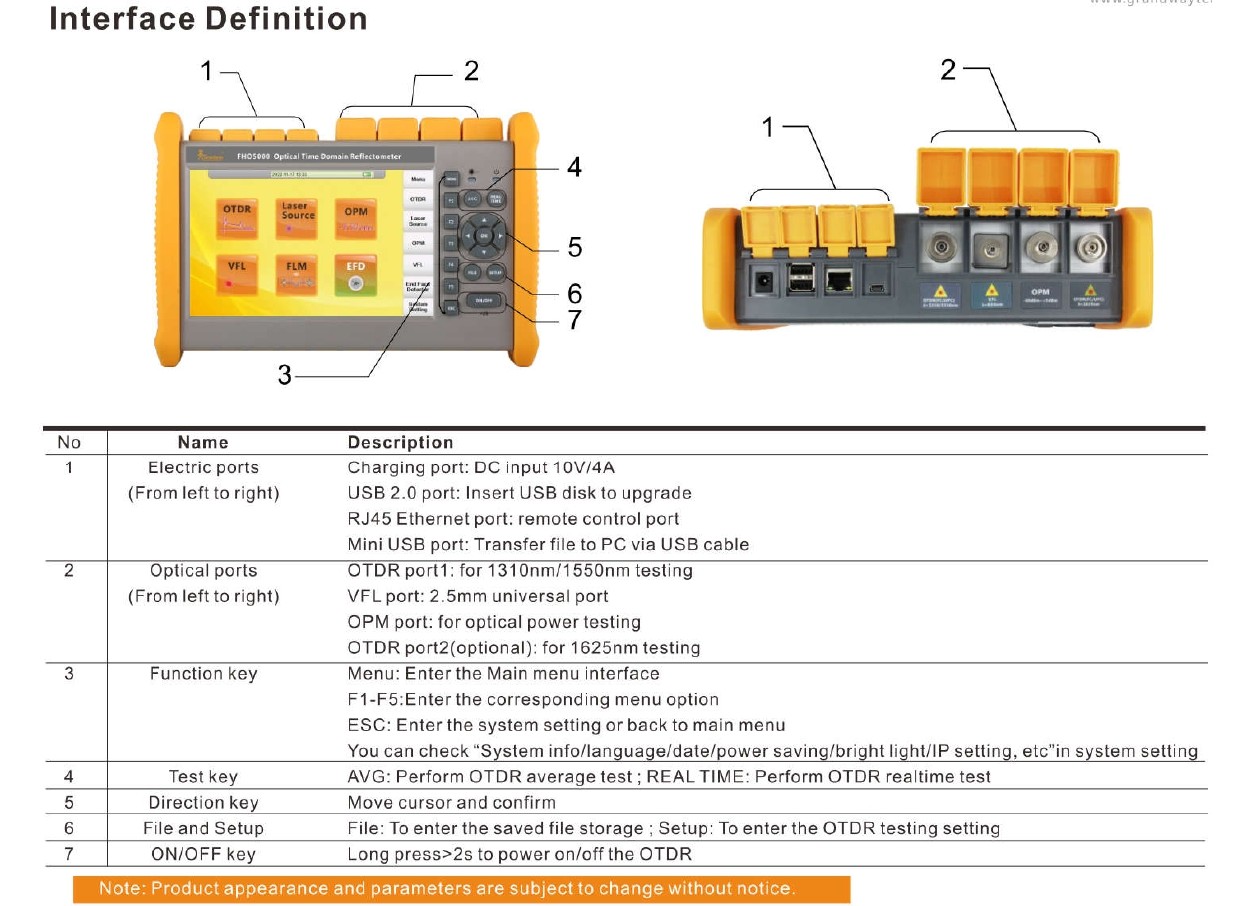

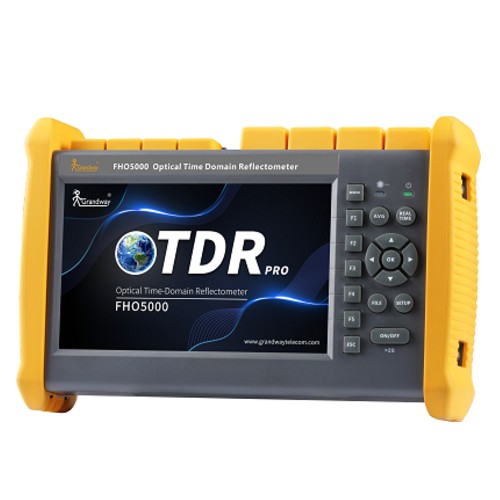

OTDR Grandway FHO5000-T43F adalah alat cerdas untuk penerapan dan pemeliharaan sistem serat optik Jaringan PON/METRO/JAUH, yang memiliki kinerja pengujian dan stabilitas produk yang lebih tinggi. Dinamika yang lebih besar dan zona mati yang dioptimalkan dapat menghasilkan pengujian serat optik yang lebih akurat. Khususnya pada jaringan PON, pekerjaan pengujian dapat disederhanakan melalui fungsi FLM yang dioptimalkan.
Fitur Grandway FHO5000-T43F
- Layar sentuh LCD anti-refleksi 7 inci
- Kemampuan uji PON yang dioptimalkan untuk melewati splitter 1×128
- Performa FLM (Fiber Link Map) yang luar biasa
- Desain terintegrasi multifungsi, cerdas dan tangguh
- Laporan PDF jejak OTDR dan laporan PDF pengujian FLM bawaan
Aplikasi
- Uji FTTX dalam jaringan PON
- Uji jaringan akses
- Uji jaringan metro
- Uji tautan serat optik jarak jauh
- Uji laboratorium dan pabrik
- Pemecahan masalah serat optik langsung
Spesifikasi OTDR Grandway FHO5000-T43F
| Dimension | 253×168×73.5mm/1.5kg (battery included) | |||||
| Display | 7 inch touch screen TFT-LCD with LED backlight | |||||
| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) | |||||
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz | |||||
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) | |||||
| Operating time: 6 hoursâ‘ , Telcordia GR-196-CORE | ||||||
| Charging time: <4 hours (power off) | ||||||
| Power Saving | Backlight off: Disable/1 to 99 minutes | |||||
| Auto shutdown: Disable/1 to 99 minutes | ||||||
| Data Storage | Internal memory: 16GB | |||||
| Language | User selectable (English, traditional Chinese, French, Korean, Russian, Spanish, | |||||
| Portuguese, Turkish, Italian, German, Thai, Hungarian, Czech, Vietnamese, | ||||||
| Polish-contact us for availability of others) | ||||||
| Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) | |||||
| Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) | ||||||
| PON Series Mode | ||||||
| Type② | Testing Wavelength (MM: ±20nm, SM: ±20nm) |
Dynamic Range (dB)③ | Event/Attenuation Dead-zone (m)④ | |||
| FHO5000-T40F | 1310/1550/1625 | 40/38/38 | 0.8/3.5 | |||
| FHO5000-T43F | 1310/1550/1625 | 43/41/41 | 0.8/3.5 | |||
| FHO5000-T45F | 1310/1550/1625 | 45/43/43 | 0.8/3.5 | |||
| Test parameter | ||||||
| Pulse Width | Single mode: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 275ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs | |||||
| Testing Distance | Single mode: 500m, 2km, 5km, 10km, 20km, 33km, 40km, 80km, 120km, 160km, 265km | |||||
| Sampling Resolution | Minimum 5cm | |||||
| Sampling Point | Maximum 256,000 points | |||||
| Linearity | ≤0.05dB/dB | |||||
| Scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div | |||||
| Distance Resolution | 0.01m | |||||
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) | |||||
| Reflectance Accuracy | Single mode: ±2dB, multi-mode: ±4dB | |||||
| IOR Setting | 1.3000~2.0000, 0.0001 step | |||||
| Units | Km, miles, feet | |||||
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) | |||||
| OTDR: User selectable automatic or manual set-up | ||||||
| Fiber Event Analysis | -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) | |||||
| -Reflective: 0.01 to 32dB (0.01dB steps) | ||||||
| -Fiber end/break: 3 to 20dB (1dB steps) | ||||||
| Other Functions | Built in multi-language PDF report generation | |||||
| Live Fiber detect: Verifies presence communication light in optical fiber | ||||||
| Dual wavelength(1310nm/1550nm) analysis-Macro bending detection | ||||||
| Trace overlay and comparison (most 8 traces) | ||||||
| Define the Pass/Fail result of each event through threshold settings | ||||||
| VFL Module | ||||||
| Wavelength | 650nm(±20nm) | |||||
| Power | 10mw,CLASSIII B | |||||
| Range | 12km | |||||
| Connector | Universal 2.5mm | |||||
| Launching Mode | CW/2Hz | |||||
| OPM Module | ||||||
| Wavelength Range | 800~1700nm | |||||
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm | |||||
| Test Range | Type A: -60~+5dBm (standard); Type B: -40~+23dBm (optional) | |||||
| Resolution | 0.01dB | |||||
| Accuracy | ±0.35dB±1nW | |||||
| Connector | FC/UPC | |||||
| LS Module (Laser Source) | ||||||
| Working Wavelength (±20nm) | 1310/1550/1625nm⑤ | |||||
| Output Power | ≥-8dBm | |||||
| Output Mode | CW/270Hz/1kHz/2kHz | |||||
| Accuracy | ±0.5dB | |||||
| Connector | FC/UPC | |||||
