Kabel Andrew Heliax AVA5 7/8 Inch 50FX

Description

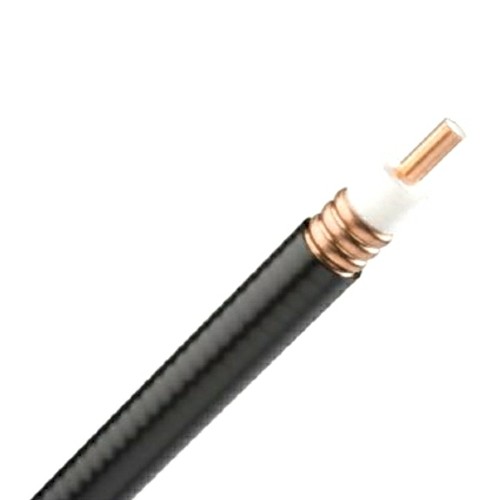

Kabel Andrew Heliax AVA5 50FX 7/8 Inch produksi andrew commscope ini merupakan kabel standard untuk perangkat Repeater & Radio Base Station. Andrew AVA5-50FX 50 OHm merupakan Kabel Heliax dengan Foam Density Busa Rendah.

Fitur Utama

Dielektrik busa kepadatan rendah
50Ω impedansi
Konduktor luar tembaga bergelombang
Konduktor dalam CCA.

Penggunaan

Kabel koaksial 50Ω dielektrik busa fleksibel Andrew Commscope adalah kabel pengumpan berkinerja sangat tinggi
Merek Heliax Andrew mewakili warisan inovasi teknologi.

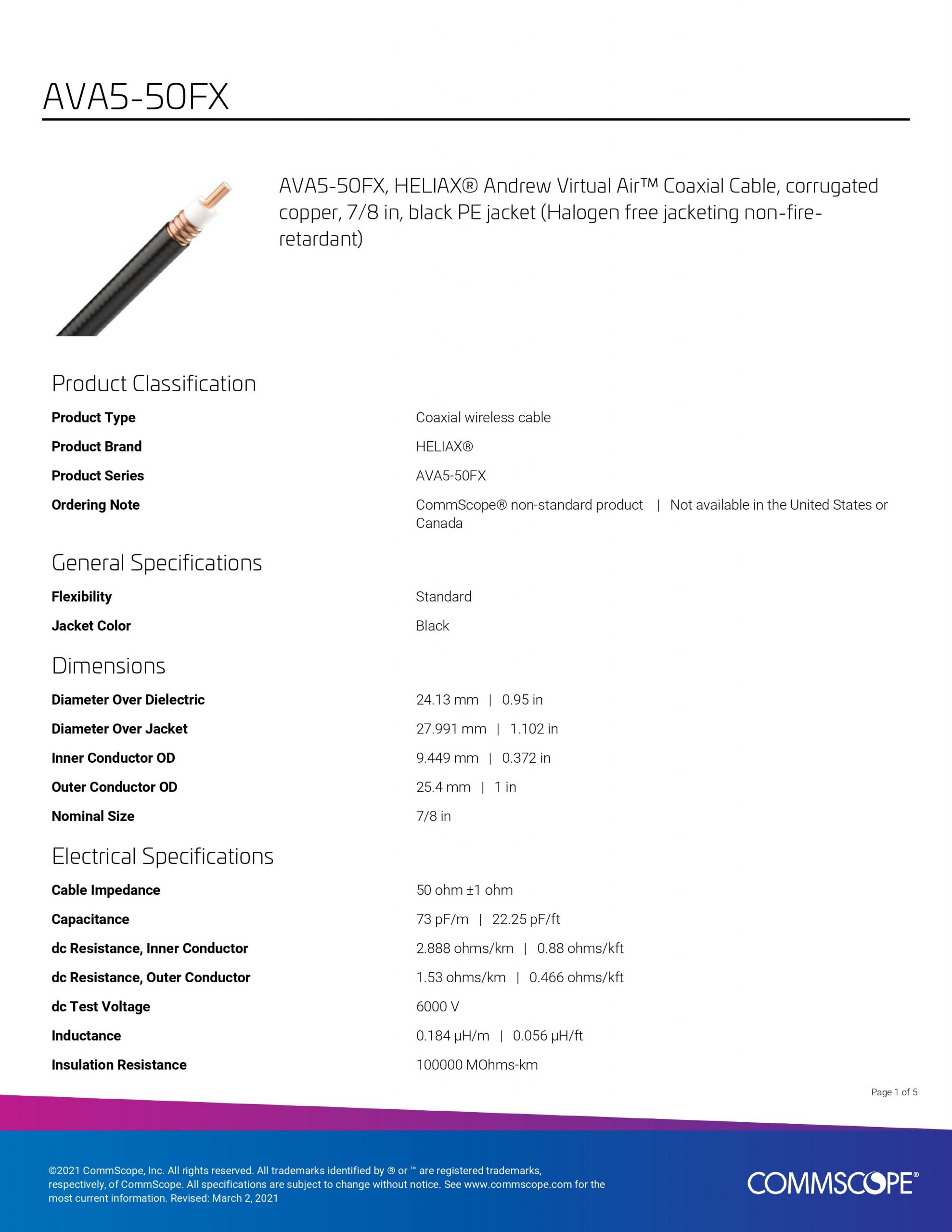

Spesifikasi Kabel Andrew AVA5 50FX

Product Classification
Product Type	Coaxial wireless cable
Product Brand	Andrew-Commscope®
Product Series	AVA5-50
Ordering Note	CommScope® standard product (Global)

General Specifications
Flexibility	Standard
Jacket Color	Black
Performance Note	Attenuation values typical, guaranteed within 5%
Specification Sheet Revision Level	B

Dimensions
Diameter Over Dielectric	24.13 mm \| 0.95 in
Diameter Over Jacket	27.991 mm \| 1.102 in
Inner Conductor OD	9.4488 mm \| 0.372 in
Outer Conductor OD	25.4 mm \| 1 in
Nominal Size	7/8 in

Electrical Specifications
Cable Impedance	50 ohm ±1 ohm
Capacitance	73 pF/m \| 22.25 pF/ft
dc Resistance, Inner Conductor	1.435 ohms/km \| 0.437 ohms/kft
dc Resistance, Outer Conductor	1.116 ohms/km \| 0.34 ohms/kft
dc Test Voltage	6000 V
Inductance	0.184 µH/m \| 0.056 µH/ft
Insulation Resistance	100000 MOhms-km
Jacket Spark Test Voltage (rms)	8000 V
Operating Frequency Band	1 – 5000 MHz
Peak Power	91 kW
Velocity	91%

Return Loss/VSWR
Frequency Band	VSWR	Return Loss (dB)
680–800 MHz	1.13	24.3
800–960 MHz	1.13	24.3
1700–2200 MHz	1.13	24.3

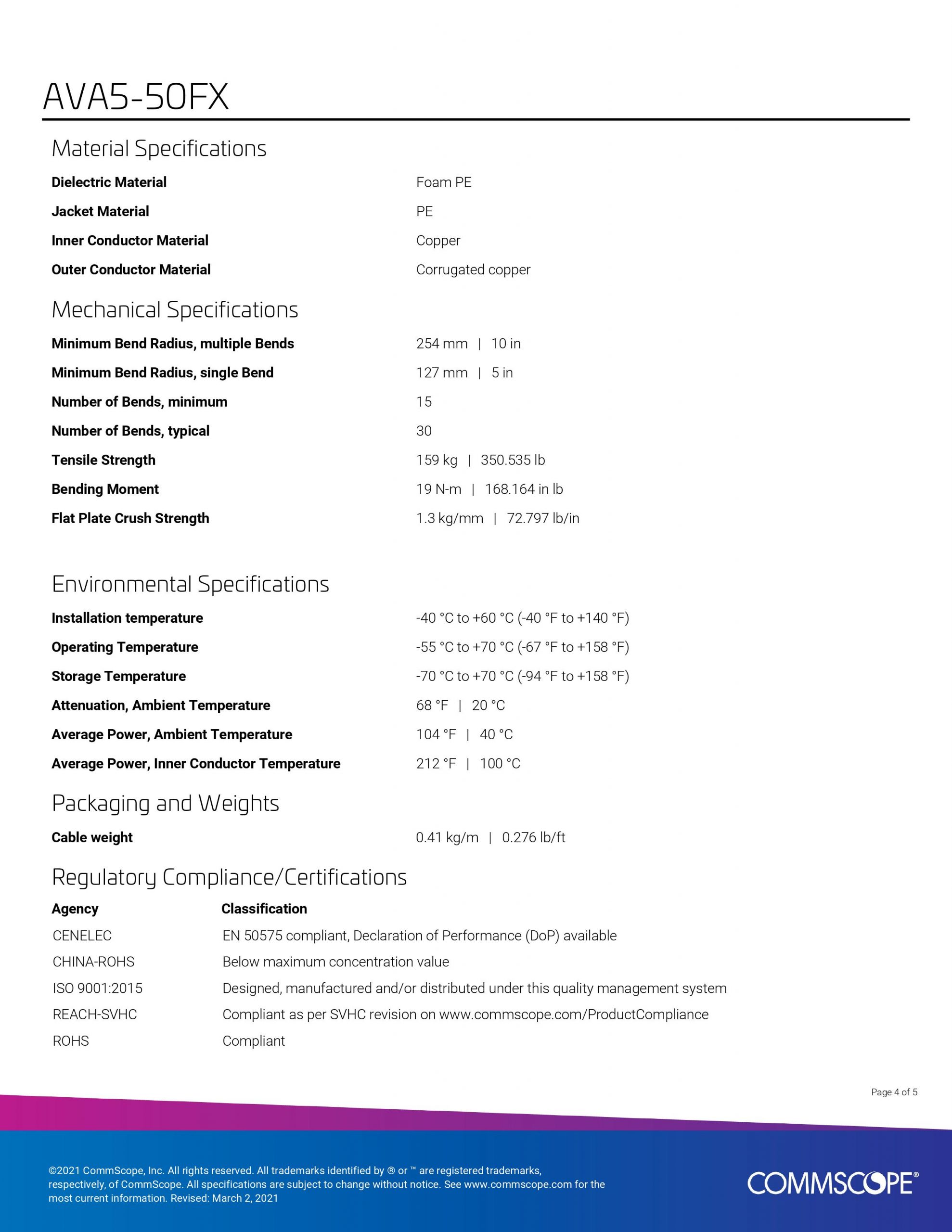

Material Specifications
Dielectric Material	Foam PE
Jacket Material	PE
Inner Conductor Material	Copper tube
Outer Conductor Material	Corrugated copper

Mechanical Specifications
Minimum Bend Radius, multiple Bends	254 mm \| 10 in
Minimum Bend Radius, Single Bend	127 mm \| 5 in
Number of Bends, minimum	15
Number of Bends, typical	30
Tensile Strength	159 kg \| 350.535 lb
Bending Moment	19 N-m \| 168.164 in lb
Flat Plate Crush Strength	1.3 kg/mm \| 72.797 lb/in

Environmental Specifications
Installation temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature	20 °C \| 68 °F
Average Power, Ambient Temperature	40 °C \| 104 °F
Average Power, Inner Conductor Temperature	100 °C \| 212 °F

Packaging and Weights
Cable weight	0.45 kg/m \| 0.302 lb/ft
