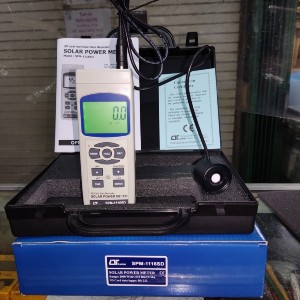

Lutron SPM-1116SD Solar Power Meter

Description

Lutron SPM-1116SD Solar Power Meter

• 3 functions : Solar power, Power integration, Transmission
• Wide spectral range
• Excellent long term stability
• Select either W/m^2 or Btu / (ft^2xh) power units
• Cosine corrected
• Application : Meteorology agriculture solar radiation measurement solar power research physics and optical laboratories solar transmission measurement identify high performance windows
• Separate probe, easy for operation of different measurement environment
  Both meter and probe are built the Tripod Fix Nut, easy installation
• Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
• Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99)
• Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly, then user can make the further data or graphic analysis by themselves
• SD card capacity : 1 GB to 16 GB (NOT INCLUDED)
• LCD with green light backlight, easy reading
• Can default auto power off or manual power off
• Data hold, record max. and min. reading
• Microcomputer circuit, high accuracy
• Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
• RS232/USB PC computer interface

Specifications Lutron SPM-1116SD Solar Power Meter :

Range	2000 W/m², 634 Btu (ft² xh)
Resolution	0.1 W/m², 1 W/m², 0.1 Btu (ft² xh), 1 Btu (ft² xh)
Accuracy	± 10 W/m², ± 3 Btu (ft² xh) or ± 5% reading
Angular accuracy	Cosine corrected < 5% for angles < 60º
Circuit	Custom one-chip of microprocessor LSI circuit
Data storage	SD memory card 1 to 16 GB
Sampling time	1 second
Interface	RS232, USB PC interface
Functions	Data hold, record max./ min., auto power off, zero button
Probe dimension	ø38 x 25 mm
Power requirements	Battery AA x 6
Dimensions/ Weight	182 x 73 x 47.5 mm/ 346 g

What’s in The Box

• Instruction manual
• Solar sensor
• Hard Carrying Case, CA-06

Optional Accessories

• SD Card
• AC to DC 9V adapter
• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software SW-U801-WIN, SW-E802



Lutron SPM-1116SD Solar Power Meter >>>> Spec sheet (PDF)
