Mastech MS2138R Digital Clamp Meter

Description

Mastech MS2138R Digital Clamp Meter

• Power Supply : 3×1.5V AAA Batteries
• Product Size : 222mm×86mm×32mm/8.74″×3.38″×1.26″
• Product Weight : 323g/0.71lb
• Certificate : RoHS
• Safety Rating : CAT III 600V

Sebuah penjepit digital pada meteran untuk tegangan dan arus DC/AC, resistansi, pengukuran frekuensi dan kontinuitas dan tes dioda. Tang Ampere AC DC ini berkualitas Industrial dengan fitur lengkap dan spesifikasi tinggi.

Penjepit digital pada meteran mengukur tegangan dan arus DC/AC, resistansi, frekuensi, dan menguji kontinuitas dan dioda.

Fitur Mastech MS2138R

• Tampilkan 4000 hitungan
• Pembukaan Rahang 40mm/1.6″
• Mulai Otomatis & Manual
• Mati Otomatis
• Dioda Tegangan Terbuka 2.8V
• Buzzer Kontinuitas <50±20Ω
• Pengukuran Relatif
• Data terus
• Tampilan Baterai Rendah
• Tampilan Lampu Latar

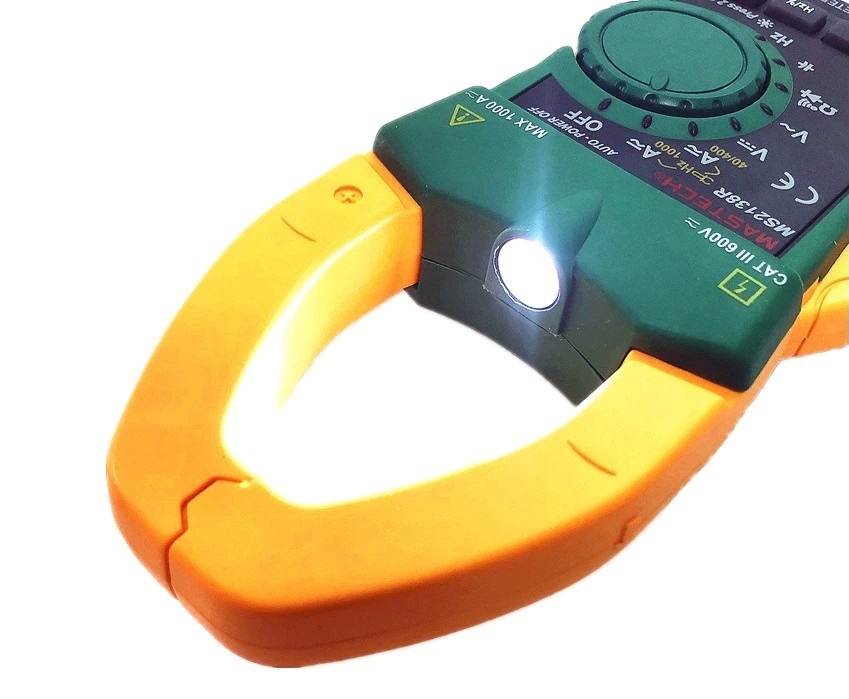

• Lampu Kerja
• Grafik batang
• Kuadrat Rata-Rata Akar Sejati.

General

• Power supply: Baterai AAA 3 × 1.5V
• Ukuran : 222mm×86mm×32mm/8.74″×3.38″×1.26″
• Berat: 323g/0.71lb
• Sertifikat: RoHS
• Peringkat Keamanan: CAT III 600V

Spesifikasi Mastech MS2138R Clamp Meter

MS2138R		Range		Resolution		Accuracy
DC Voltage		400mV		0.1mV		±(1.0%+2)
		4V/40V/400V		0.001V/0.01V/0.1V		±(0.7%+2)
		600V		1V		±(0.8%+2)
AC Voltage		400mV/4V/40V/400V		0.0001V/0.001V/0.01V/0.1V		±(0.8%+3)
		600V)		1V		±(1.0%+4)
DC Current		40A/400A/1000A		0.01A/0.1A/1A		±(3.0%+6)
AC Current		40A/400A/1000A		0.01A/0.1A/1A		±(2.5%+6)
Resistance		400Ω/4kΩ/40kΩ/400kΩ		0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ		±(0.8%+3)
		4MΩ/40MΩ		0.001MkΩ/0.1MΩ		±(1.2%+3)
Capacitance		40nF/400nF/4μF		0.01nF/0.1nF/0.001μF		±(4.0%+5)
		40μF/400μF/4000μF		0.01μF/0.1μF/1μF		±(4.0%+5)
Frequency (A)		100Hz/1kHz		0.01Hz/0.1Hz		±(1.5%+5)
		>1kHz		0.001kHz		Reference
Frequency (V)		100Hz/1kHz/10kHz		0.01Hz/0.1Hz/0.001kHz		±(1.5%+5)
		>10kHz		0.01kHz		Reference
Frequency		10Hz/100Hz/1kHz/10kHz		0.001Hz/0.01Hz/0.1Hz/1Hz		±(0.5%+2)
(Hz/Duty)		100kHz/1MHz/10MHz		0.01kHz/0.1kHz/0.001MHz		±(0.5%+2)
Duty Cycle		0.1%~99%		0.10%		±3.0%

Accessories Included

Paket termasuk Unit Mastech MS2138R Test leads Carry bag Battery and User’s manual





Mastech MS2138R Digital Clamp Meter   >>>>>  Spec sheet (PDF)
