Description

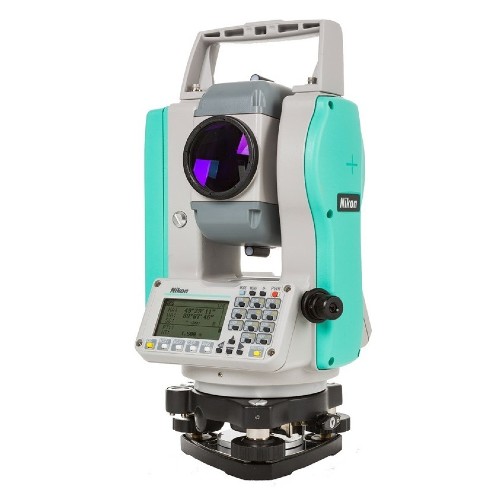

Total Station Nikon K2 menawarkan EDM canggih dalam paket inovatif, termasuk opsi pengisian daya dan konektivitas yang fleksibel, dan didukung oleh layanan hebat dan dukungan dealer yang Anda harapkan dari Nikon.
Nikon K2 hadir dengan pengisi daya baru, yang dilengkapi koneksi USB-C on-the-go yang memungkinkan Anda mengisi ulang daya melalui power bank atau colokan mobil sehingga Anda dapat mengisi ulang baterai bahkan di daerah terpencil.
Aplikasi Total Station File Transfer dan koneksi Bluetooth memungkinkan Anda mentransfer data dengan mudah antara lapangan dan kantor, sehingga data Anda sudah sampai di kantor sebelum Anda tiba.
Ekonomis dan praktis, K2 dilengkapi optik Nikon yang cerah dan keandalan yang tangguh, menjadikan masing-masing total station yang tangguh ini pilihan tepat untuk berbagai proyek.
Fitur Nikon K2
- Akurasi sudut 2″
- Model prisma dan tanpa reflektor
- EDM cepat dan akurat
- Aplikasi Telepon untuk transfer data yang mudah
- NFC menyederhanakan pemasangan Bluetooth
- Dapat diisi daya di mana saja dengan pengisi daya baterai USB
Spesifikasi Total Station Nikon K2
| General | ||
| Weight | 11 lb | |
| Dimensions | 13.1 in x 6.6 in x 6.8 in | |
| Protection Class | IP55 | |
| Internal Memory | 50,000 records | |
| Angle Measurement | ||
| Measuring Method/Reading System | Prism | |
| Detection Method | Photoelectric detection by incremental encoder | |
| Minimum Reading | .1/5/10” (0.2/1/2 mgon) | |
| Accuracy | 2“ | |
| Diameter of Circle | 3.46 in | |
| Distance Measurement | ||
| EDM Accuracy (Precision) | ±(2+2 ppm × D) mm | |
| Tilt Sensor/Compensator | ||
| Range | .±3‘ | |
| Type | Dual axis | |
| Method | Liquid-electric detection | |
| Battery/Power | ||
| Power Source | Li-on battery | |
| Battery Life | Upto 22 hours | |
| Optical Plummet | ||
| Image | Erect | |
| Magnification | 3X | |
| Field of View | 5° | |
| Focus Range | 0.5 m (1.6 ft) to 8 | |
| Level | ||
| Circular Bubble Vial | 10‘/2 mm | |
| Telescope | ||
| Length of Tube | 4.9 in | |
| Image | Erect | |
| Diameter of Objective Lens (Aperture) | 1.77in | |
| Magnification | 30× (18x/36x with optional eyepieces) | |
| Field of View | 1°20 | |
| Resolving Power | . 3” | |
| Minimum Focus Distance | 4.9 ft | |
| Display and Keypad | ||
| Type | Single LCD display & Dual LCD display | |
| Touchscreen | No | |
| Backlight | Yes | |
| Pixels | 128 × 64 pixel | |
| Temperature | ||
| Operating | –4 °F to +122 °F | |
| Measurement Range (under fair weather conditions) | ||
| Single Prism | 13,123 ft | |
| No Prism | n/a | |
| Interface | ||
| Bluetooth | Integrated | |
Standard package
- Nikon XS-Series ( Battery, Charger)
- 2 Alumunium Tripod
- Prisma Polygon
- Single Prisma
- Pole 2m
- Cable Data + Software
