Description

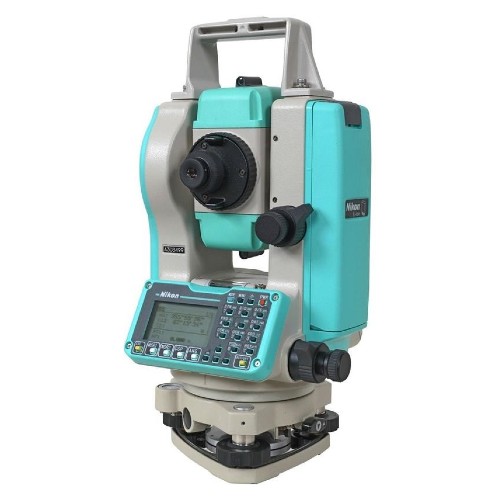

Total Station Nikon NPL-322 Plus Tersedia 2 pilihan akurasi yaitu 2″ (2 Face) dan 5″ (1 face). Kedua fitur ini memiliki EDM reflectorless dengan jangkauan 400 meteran (1300 kaki). Nikon NPL 322 ekonomis, serbaguna, mudah digunakan, dan memiliki optik legendaris Nikon. Baterai yang tahan lama mendukung bahkan hari terpanjang di lapangan.
- Autofokus yang ditenagai oleh Nikon untuk menghasilkan fokus yang cepat dan tepat.
- Layar sentuh berwarna, yang memungkinkan Survey Basic, Survey Pro, dan Layout Pro berjalan di dalamnya.
- Optik Nikon yang unggul untuk tampilan yang tajam dan cerah bahkan dalam kondisi cahaya redup.
- Trimble L2P siap untuk pelacakan yang mudah dan efektif, sehingga Anda selalu tahu di mana aset Anda berada.
Fitur Nikon NPL-322 Plus
- Pilihan akurasi ( 2″ & 5″ )
- Kompensasi sumbu ganda
- Memori internal 25.000 poin
- Port serial RS-232
- Bluetooth
- IP55 tahan debu dan tahan air
- Baterai isi ulang Li-ion yang tahan lama
- Daya tahan baterai hingga 22 jam

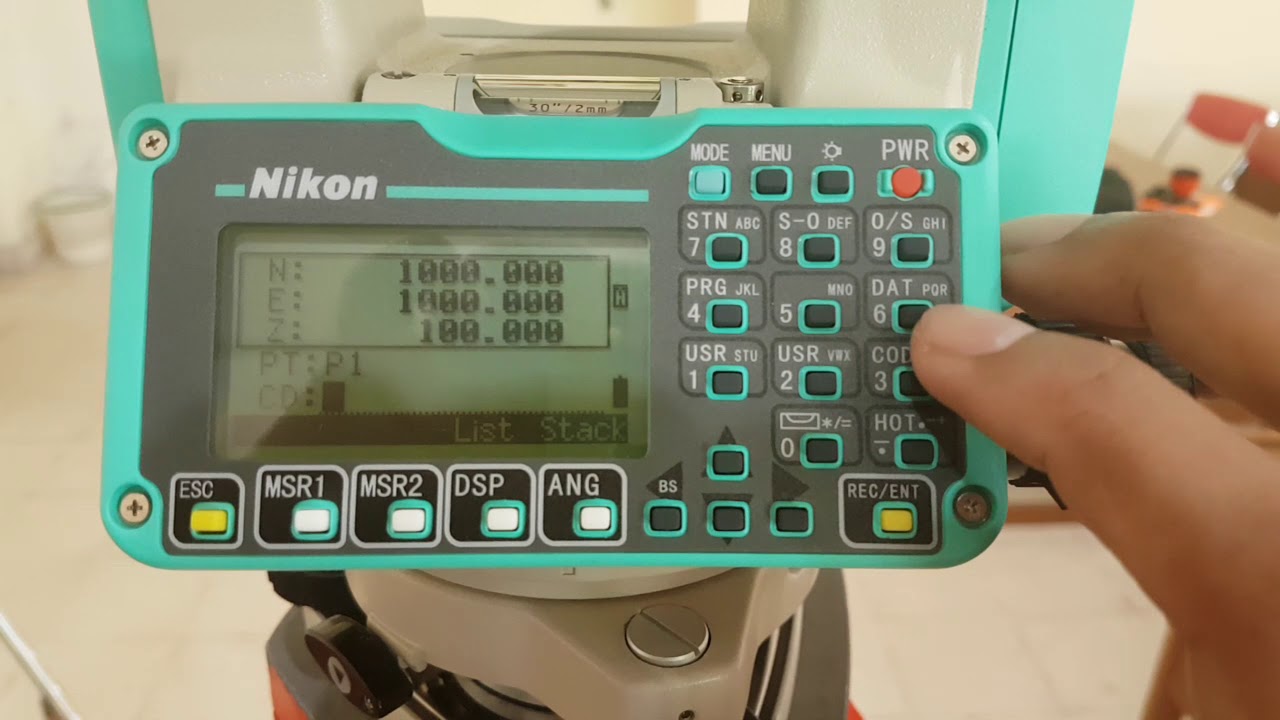

- Papan tombol yang mudah digunakan
- Layar LCD grafis dengan lampu latar
- EDM cepat dan akurat
Spesifikasi Total Station Nikon NPL-322 Plus
| General | ||
| Weight | 11 lbs (5 kg) | |
| Dimensions | 6.6″ L x 6.8″ W x 13.1″ H (16.8 cm x 17.3 cm x 35.5 cm) | |
| Warranty | 2-year | |
| Protection Class | IP54 dustproof and water splash resistant | |
| Tripod Thread | 5/8 x 11 | |
| Auto Shut Off | No | |
| Internal Memory | 50,000 points | |
| Software | Built-in Nikon survey software | |
| Tribrach | Fixed | |
| Auto-Tracking Speed | No | |
| Guide Light | No | |
| Angle Measurement | ||
| Measuring Method/Reading System | Incremental encoder | |
| Detection Method | Photoelectric | |
| Minimum Reading | 1 second/ 5 second/ 10 second | |
| Accuracy | 2 second, 5 second | |
| Diameter of Circle | 3.46-inch (88 mm) | |
| Display Method | No | |
| Distance Measurement | ||
| Unit of Measure (distance display) | m/ft | |
| EDM Accuracy (Precision) | ±(2+2 ppm × D) mm | |
| Minimum Reading | Up to 656 ft. (200 m) | |
| Tilt Sensor/Compensator | ||
| Range | ±3 degrees | |
| Type | Dual-axis | |
| Method | Liquid-electric detection | |
| Setting Accuracy | 1 arcsec | |
| Battery/Power | ||
| Power Source | 2 × Li-ion rechargeable batteries | |
| Battery Life | Up to 4.5 hours (continuous distance/angle measurement); Up to 11 hours (distance/angle measurement every 30 seconds) | |
| Battery Life Alert | Yes | |
| Voltage | 3.8-volt DC | |
| Optical Plummet | ||
| Image | Erect | |
| Magnification | 3x | |
| Field of View | 5° | |
| Focus Range | 1.6 ft. (0.5 m) to infinity | |
| Level | ||
| Plate/Tubular Bubble Vial | 30 second (2 mm) | |
| Circular Bubble Vial | 10 minutes (2 mm) | |
| Electronic Level | No | |
| Telescope | ||
| Length of Tube | 4.9 in (125 mm) | |
| Image | Erect | |
| Diameter of Objective Lens (Aperture) | 1.77 in (45 mm) | |
| Magnification | 30x | |
| Field of View | 1°20′ | |
| Resolving Power | 3″ | |
| Minimum Focus Distance | 4.9 ft. (1.5 m) | |
| Ratio of Stadia Lines | No | |
| Sight Distance Precision/Focus Range | No | |
| Reticle Illumination | No | |
| Reflectorless | Yes | |
| Quick Sights (Rough Sights) | No | |
| Display and Keypad | ||
| Type | LCD display | |
| Sides | Single | |
| Keys | Full numeric keypads | |
| Touchscreen | No | |
| Backlight | Yes | |
| Pixels | 128 × 64 pixels | |
| Temperature | ||
| Operating | -4 to +122 °F (-20 to +50 °C ) | |
| Storage | No | |
