Description

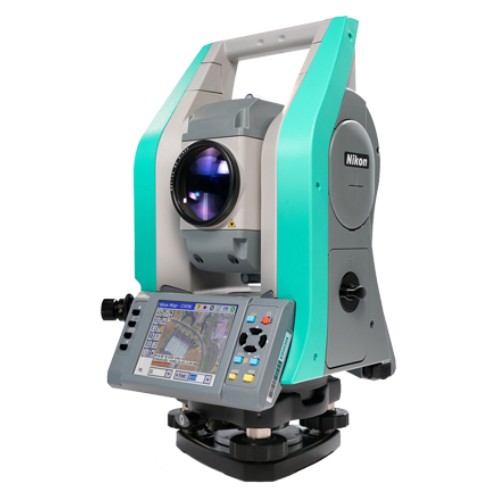

Total Station Nikon XF-Series dikemas dengan fitur yang membuat pekerjaan survei lebih mudah dan lebih cepat. Optik Nikon yang unggul memberikan penampakan yang tajam dan cerah bahkan dalam kondisi cahaya redup.
Portofolio Nikon XF memberi kesempatan untuk memilih teknologi pengukur jarak elektronik (electronic distance measuring/EDM) yang bekerja paling baik untuk jenis pekerjaan yang dilakukan. Dengan total station Nikon XF, kerja lapangan selalu akurat dan efisien berkat alur kerja yang telah terbukti dan serangkaian fitur, termasuk:
- Layar sentuh dua warna, memungkinkan Survey Basic dan Layout Pro berjalan onboard dan mudah dikontrol dari kedua sisi
- Optik Nikon superior untuk penampakan tajam dan cerah bahkan dalam kondisi cahaya redup
- Baterai hot-swappable, mengurangi kebutuhan downtime
- Desain yang ringan dan ringkas membuat total station mudah disimpan, diangkut, dan ditangani.
Fitur Nikon XF-Series
- Fokus otomatis
- EDM cepat dan kuat
- Tampilan layar sentuh dua warna
- Trimble Locate2Protect siap
- Keamanan PIN
- Baterai hot swappable
- Akurasi 1″, 2″, 3″, dan 5-detik
- Akurasi 1-detik untuk Nikon XF 101
- Akurasi 2-detik untuk Nikon XF 102
- Akurasi 3-detik untuk Nikon XF 103
- Akurasi 5-detik untuk Nikon XF 105
Specifications Total Station Nikon XF-Series
| General | ||
| Weight | 9.5 lbs (4.3 kg) | |
| Dimensions | 8.1″ L x 6.7″ W x 12.5″ H (20.57 cm x 17.02 cm x 31.75 cm) | |
| Warranty | 2-year | |
| Protection Class | IP66 dustproof and water jet resistant | |
| Tripod Thread | 05/08/2011 | |
| Auto Shut Off | No | |
| Internal Memory | 512 MB RAM, 4 GB flash memory | |
| Software | Survey Basic, Survey Pro, and Layout Pro (sold separately) | |
| Tribrach | No | |
| Auto-Tracking Speed | No | |
| Guide Light | No | |
| Angle Measurement | ||
| Measuring Method/Reading System | Absolute encoder | |
| Detection Method | No | |
| Minimum Reading | N/A | |
| Accuracy | 1 second, 2 second, 3 second, 5 second | |
| Diameter of Circle | 2.4-inch (60.96 mm) | |
| Display Method | No | |
| Distance Measurement | ||
| Unit of Measure (distance display) | m/ft | |
| EDM Accuracy (Precision) | ±(2+2 ppm x D) mm | |
| Minimum Reading | No | |
| Tilt Sensor/Compensator | ||
| Range | ±3 degrees | |
| Type | Dual-axis | |
| Method | Liquid-electric detection | |
| Setting Accuracy | No | |
| Battery/Power | ||
| Power Source | 2 x Internal Li-ion battery | |
| Battery Life | Up to 14 hours (continuous angle-only measurement); up to 12 hours (distance and angle measurement every 30 seconds with autofocus); up to 7 hours (continuous distance and angle measurement) | |
| Battery Life Alert | No | |
| Voltage | 3.6-volt | |
| Optical Plummet | ||
| Image | Erect | |
| Magnification | 30x | |
| Field of View | 1°25′ | |
| Focus Range | No | |
| Level | ||
| Plate/Tubular Bubble Vial | No | |
| Circular Bubble Vial | 10 minutes (2 mm) | |
| Electronic Level | No | |
| Telescope | ||
| Length of Tube | 4.9 in (124.46 mm) | |
| Image | Erect | |
| Diameter of Objective Lens (Aperture) | 1.77 in (45 mm) | |
| Magnification | 30x | |
| Field of View | 1°25′ | |
| Resolving Power | 3″ | |
| Minimum Focus Distance | 4.9 ft. (1.5 m) | |
| Ratio of Stadia Lines | No | |
| Sight Distance Precision/Focus Range | No | |
| Reticle Illumination | No | |
| Reflectorless | Yes | |
| Quick Sights (Rough Sights) | No | |
| Display and Keypad | ||
| Type | Colored LCD display | |
| Sides | Dual | |
| Keys | No | |
| Touchscreen | Yes | |
| Backlight | Yes | |
| Pixels | 640 x 480 pixels | |
| Temperature | ||
| Operating | -4 to 122 °F (-20 to 50 °C) | |
| Storage | -22 to 140 °F (-25 to 60 °C) | |
| Applications | ||
| Surveying and Construction | Yes | |
| Mapping and GIS (geographic information systems) | Yes | |
| Utilities | Yes | |
| Environment Studies | Yes | |
| Geomarking | Yes | |
| Archaeology | Yes | |
| Accident Reconstruction | Yes | |
| Measurement Range (under fair weather conditions) | ||
| Single Prism | Up to 4.9 feet to 16,404 feet (1.5 m to 5,000 m) | |
| Triple Prism | No | |
| No Prism | Up to 2,625 feet (800 m) | |
| Mini Prism | No | |
| Reflective Tape | No | |
| Reflector Sheet | Up to 4.9 feet to 984 feet (1.5 m to 300 m) | |
| Cat Eye/Flat Prism | No | |
| 360 Degree Prism | No | |
| Functions | ||
| Coordinate Measurement Point | Yes | |
| Angle and Distance Stake Out | Yes | |
| Stake Out Line | Yes | |
| Offsets | Yes | |
| Missing Line | Yes | |
| Remote Elevation | Yes | |
| Resection | Yes | |
| Area Calculation | Yes | |
| Real-Time Video Imaging | No | |
| Measurement Time | ||
| Fine | N/A | |
| Rapid | N/A | |
| Tracking | N/A | |
| Laser Plummet | ||
| Accuracy | No | |
| Class | Class 2 | |
| Wavelength | No | |
| Laser Pointer | ||
| Class | 2 | |
| Accuracy | N/A | |
| Laser Range | N/A | |
| Interface | ||
| Bluetooth | Bluetooth Class 1 | |
| USB | 2 (host and client) | |
| Pin Port | RS-232C | |
| Operating System | No | |
| RC-PR5 Remote Control System | ||
| Operating Range | N/A | |
| Measuring Time | N/A | |
| Auto-pointing | ||
| One AP Prism | No | |
| Reflective Sheet | No | |
| 360 Degree Prism | No | |
| Mini Prism | No | |
Apa yang ada di dalam kotak:
- Nikon XF-Series Total Station
- Tas jinjing plastik keras
- Pengisi daya universal
- Kabel daya dan adaptor
- Penutup hujan/debu
- Tutup lensa
- Alat pin penyesuaian
- Kunci pas
- Tribrach
- 2 tali bahu untuk tas jinjing
- 2 Baterai Li-ion
- Panduan pengguna
Dilengkapi dengan
- 2 Alumunium Tripod
- Prisma Polygon
- Single Prisma
- Range Pole
- Cable Data + Software
