Description

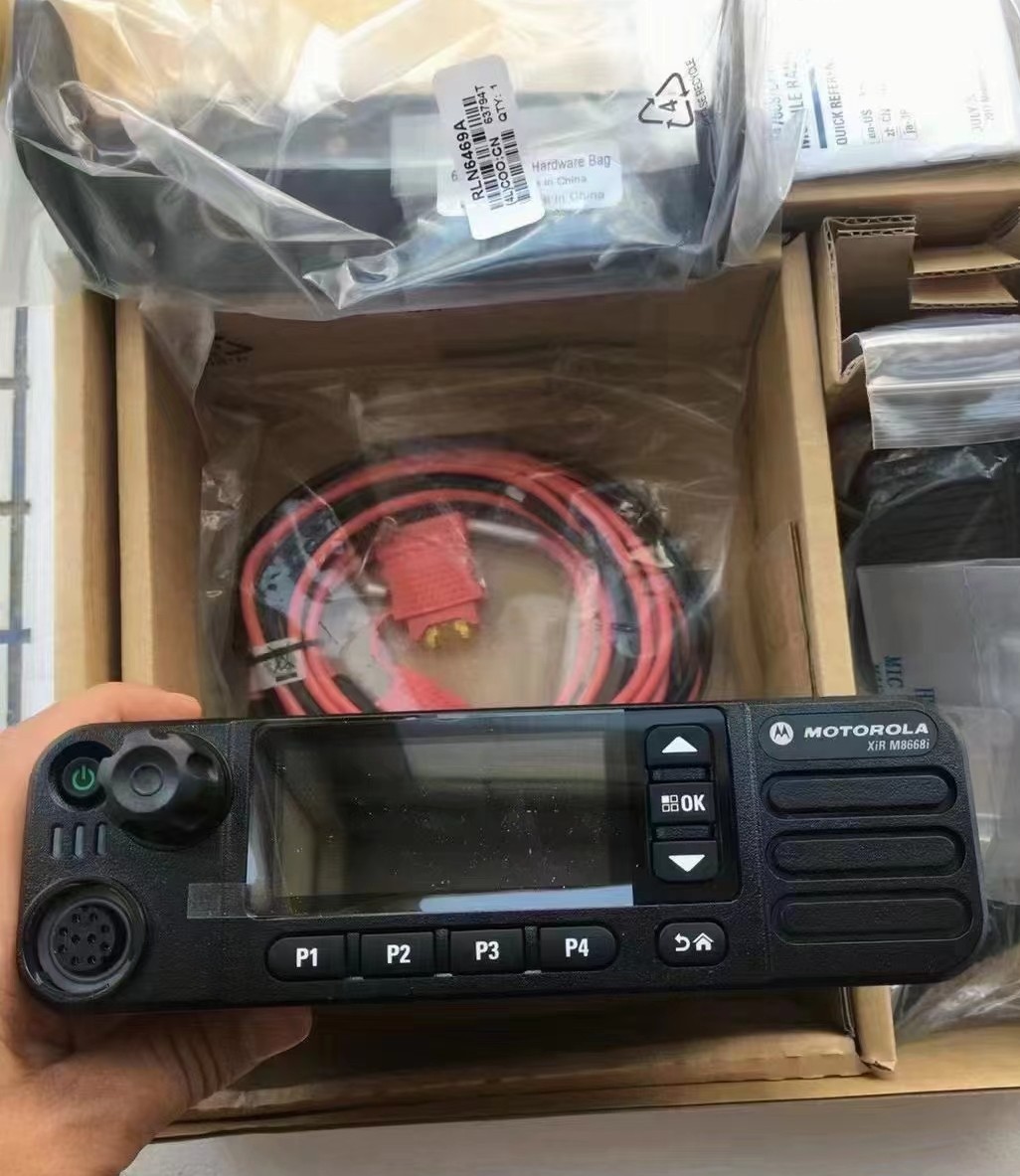

Radio RIG Motorola XiR-M8668i dirancang untuk profesional dengan suara dan data terintegrasi berkinerja tinggi, fitur-fitur canggih untuk pengoperasian yang efisien,
Mobile Radio digital MOTOTRBO XiR-M8668i standar DMR dari Motorola Solutions yang dirancang untuk komunikasi suara dan data berkinerja tinggi di kendaraan atau stasiun pangkalan. Model alphanumeric ini dilengkapi dengan layar warna beresolusi tinggi, mendukung hingga 1.000 kapasitas saluran, serta memiliki fitur konektivitas modern yang sangat ideal untuk sektor transportasi, logistik, manufaktur, dan keamanan public.
Fitur Motorola Mototrbo XiR-M8668i
- Wi-Fi terintegrasi
- Pembaruan perangkat lunak melalui udara
- Bluetooth 4.0
- Pelacakan lokasi dalam ruangan
- GNSS multi-konstelasi untuk meningkatkan akurasi lokasi
- Kapasitas Saluran 1000
- Jarak Saluran 12,5 kHz / 25 kHz
Specifications Radio RIG Motorola Mototrbo XiR-M8668i
| Alphanumeric Model | ||||||||||
| Model Number | XiR M8668i / XiR M8660i* | |||||||||
| Band | VHF | 350 | UHF Band 1 | UHF Band 2 | 800 | |||||
| Frequency | 136-174 MHz | 350-400 MHz | 403-470 MHz | 450-527 MHz | 806-825 MHz | |||||
| 851-870 MHz | ||||||||||
| Low Power Output | 1-25 W | |||||||||
| High Power Output | 25-45W | 1-40W | 25-40W | 1-40W | 10-35W | |||||
| Channel Spacing | 12.5, 25 kHz | |||||||||
| Channel Capacity | 1000 | |||||||||
| Dimensions (H x W x D) | 53 x 175 x 206 mm | |||||||||
| Weight | 1.8 kg | |||||||||
| Power Supply (Nominal) | 12 V | |||||||||
| Max Current Drain, Standby | 0.8Â A | |||||||||
| Max Current Drain, Receive | Â 2 A | |||||||||
| Transmitter | ||||||||||
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD, 12.5 kHz Voice: 7K60F1E and 7K60FXE, | |||||||||
| Combination of 12.5 kHz Voice and Data: 7K60F1W | ||||||||||
| Digital Protocol | ETSI TS 102 361-1, -2, -3, -4 | |||||||||
| Conducted/Radiated Emissions (TIA603D) | -36 dBm < 1GHz, -30 dBm > 1GHz | |||||||||
| Adjacent Channel Power | 60 dB (12.5 kHz channel) | |||||||||
| 70 dB (25 kHz channel) | ||||||||||
| Frequency Stability | ± 0.5 ppm | |||||||||
| Receiver | ||||||||||
| Analogue Sensitivity (12dB SINAD) | 0.22 uV typical | |||||||||
| Digital Sensitivity (5% BER) | 0.19 uV typical | |||||||||
| Intermodulation (TIA603D) | VHF :Â 78dB | |||||||||
| UHF1, UHF2, 350, 800 : 75dB | ||||||||||
| Adjacent Channel Selectivity, (TIA603A)-1T | VHF : 65 dB (12.5 kHz channel), 80 dB (25 kHz channel) | |||||||||
| UHF1, UHF2, 350, 800 : 65 dB (12.5 kHz channel), 75 dB (25 kHz channel) | ||||||||||
| Adjacent Channel Selectivity, (TIA603D)-2T & (TIA603C)-2T | VHF : 50 dB (12.5 kHz channel), 80 dB (25 kHz channel) | |||||||||
| UHF1, UHF2, 350, 800 : 50 dB (12.5 kHz channel), 75 dB (25 kHz channel) | ||||||||||
| Spurious Rejection (TIA603D) | VHF : 80 dB | |||||||||
| UHF1, UHF2, 350, 800 : 75 dB | ||||||||||
Dilengkapi dengan:
|
 |
|||||||||
