Description

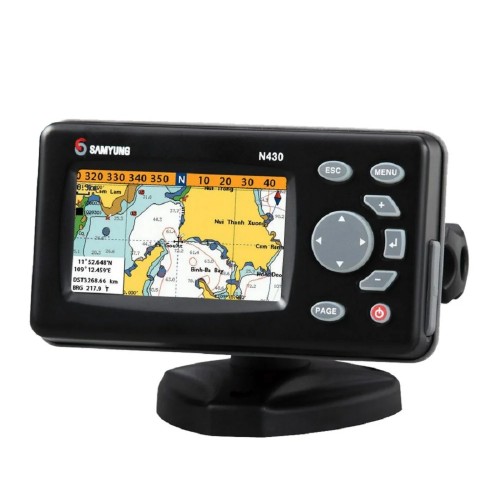

Samyung N430/NF430/F430 merupakan GPS/Combo/Fishfinder layar 4,3 inci dengan resolusi tinggi serta Struktur menu yang ringkas, mudah digunakan dan akan memuaskan keinginan Anda!
Fitur N430/NF430/F430
- LCD TFT beresolusi tinggi 4,3”
- Respon layar cepat oleh CPU berkinerja tinggi
- Lampu latar LED yang dapat disesuaikan 10 langkah
- Tersedia beberapa bahasa termasuk Inggris, Cina, Rusia, Thailand, Melayu, dll.
- Memori internal 128MB dan peta standar Samyung bawaan
- DGPS(WAAS, MSAS, EGNOS)
- Jenis operasi yang mudah digunakan dengan menggunakan ikon untuk setiap menu
- Antarmuka NMEA 0183 (AIS, NAVTEX, DSC, dll.)
- 2 layar terpisah (Bagan, Data, Jalan Raya, dll.)
- Cocok untuk perahu nelayan kecil
- Menggunakan frekuensi tunggal (200kHz) untuk mendeteksi ikan kecil dan ikan tunggal
- Mudah digunakan dengan penguatan otomatis
Spesifikasi Samyung N430/NF430/F430
| Model | N430 | F430 | NF430 | ||
| Size | 127.5 mm(H) x 183 mm(W) x 91.5 mm(D) | ||||
| Display | Wide 4.3”, TFT color, 480 x 272 pixels | ||||
| Supply voltage | 10 to 36 V DC | ||||
| Supply current | 13.8 V, 0.13A min-no backlighting. 0.24A max-full backlighting. | ||||
| Operating temp. | -10°C ~ 50°C | ||||
| Alarms | Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels | ||||
| Chart/User card | C-MAP™ SD Card (NT-MAX, NT+ or NT) / SD Card | – | |||
| Waypoints | 10,000 waypoints (Event Mark : 48, Mark Color : 16) | – | |||
| Routes | 100 Routes, with up to 100 points each | – | |||
| Tracks | By time or distance, 10 track of 15,000 points | – | |||
| Chart datums | 216 Chart datums (see next page) | – | |||
| Chart scale | 0.2 ~ 500 nm | – | |||
| Interface | NMEA 0183 | – | |||
| Frequency | – | 200KHz | |||
| Output | – | 300W | |||
| Depth Range | – | Min : 0m~3m, Max : 0m~300m | |||
| Color Display | – | 16 colors | |||
| Brightness | – | 10-step | |||
| Screen Moving Speed | – | Super fast, fast, medium, low, stop | |||
| Battery Voltage Display | – | Voltage number dispaly | |||
| AUTO GAIN Adjustment | – | OFF/ON | |||
| A-Mode Display | – | OFF/ON | |||
| Demo Dispaly | – | OFF/ON | |||
| Weak Color Removal | – | 0%~75% | |||
