Description

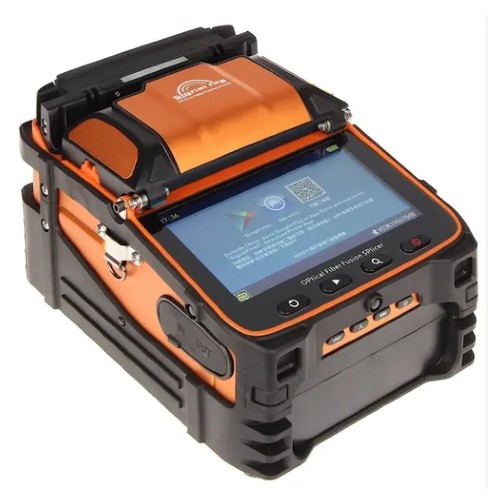

Signal Fire AI6C adalah fusion splicer dengan fokus otomatis dan enam motor, Ini sepenuhnya memenuhi syarat dengan konstruksi batang jarak menengah dan pendek, proyek FTTH, pemantauan keamanan, dan proyek penyambungan kabel serat lainnya.
Mesin ini menggunakan CPU quad-core industri, respons cepat, saat ini merupakan salah satu mesin penyambungan serat tercepat di pasaran; dengan layar beresolusi tinggi 800X480 berukuran 5 inci, pengoperasiannya sederhana dan intuitif; dan pembesaran fokus hingga 300 kali, membuatnya sangat mudah untuk mengamati serat dengan mata telanjang. Penyambungan penyelarasan inti berkecepatan 5 detik, pemanasan 15 detik, efisiensi kerja meningkat hingga 50% dibandingkan dengan mesin penyambung biasa.

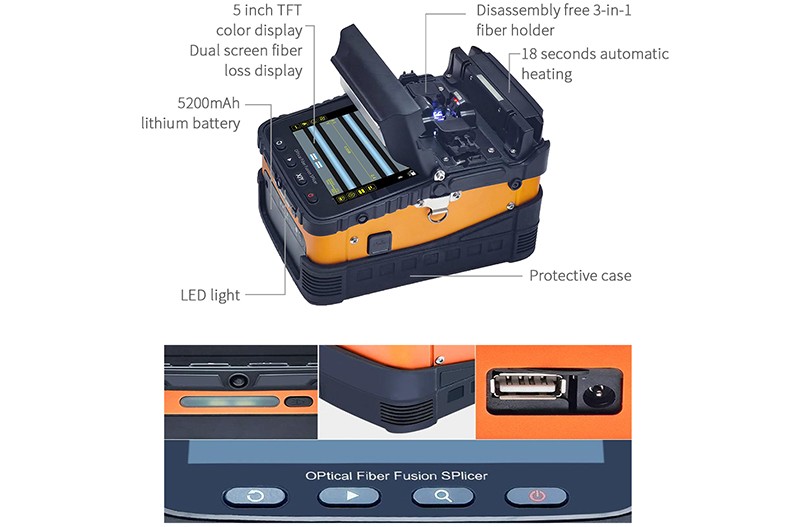

Fitur AI6C
- Splicer fusi pelurusan inti
- Enam motor
- Penyambungan cepat 8 detik
- Pemanasan cepat 18 detik
- Fokus otomatis pembesaran 300 kali
- Penahan serat 3 dalam 1
- Baterai litium berkapasitas besar 5200mAh
- Penerangan untuk splicer yang nyaman untuk operasi malam hari
- Dapat mengisi daya ponsel
- Koneksi Bluetooth (lepaskan kabel data USB)
Spesifikasi Signal Fire AI6C
| iber alignment | Core/cladding | |
| Motor number | 6 motors | |
| Splicing time | 8s | |
| Heating mode | 18s， can be customized according to the external environment | |
| Fiber type | Single-mode fiber (SMF/G.652), BIF/G.657) | |
| The cladding diameter | 80-150μm | |
| Splicing loss | 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） | |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding | |
| Splicing way | Automatic, semi-automatic | |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable | |
| Battery capacity | 5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores | |
| Magnification | 300 (X or Y), 150 (X or Y) | |
| Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm | |
| Cutting length | Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm | |
| Heat shrink tube | 60mm、50mm、40mm、25mm | |
| Tensile testing | standard 2N | |
| Display | 5 inch TFT color display screen | |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction | |
| Charge mobile device | The USB port can charge mobile devices such as mobile phones | |
| Boot time | 1s, boot can enter the working mode | |
| Data is stored | Unlimited, machine storage 1000 groups | |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m | |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software | |
| Interface | USB2.0 (Type A) | |
| Return loss | Better than 60 db | |
| Product protection | Waterproof, dustproof and fall proof | |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A | |
| The work environment | Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
Package Includes:
- Signal Fire AI6C + Baterai
- Box
- Holder SOC
- Electroda
- Charger
- Cleaver + Kunci L
- Tang Stripper 3hole
- Tang Dropcore
- Botol Alkohol
- Kuas pembersih
