Description

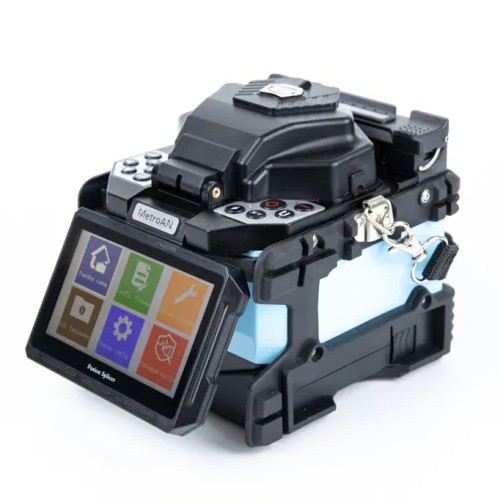

Fusion Splicer Skycom T-317S merupakan instrument untuk menyambung dua serat optik ujung ke ujung menggunakan panas, menyatukan kedua serat sedemikian rupa sehingga cahaya yang melewati serat tidak terhambur atau terpantul kembali oleh sambungan, dan agar sambungan dan area di sekitarnya hampir sama kuatnya dengan serat asli itu sendiri.
Fitur Skycom T-317S
- Penyambungan Cepat 8 detik, Pemanasan Cepat 15 detik
- Akurasi Lebih Tinggi
- 6 motor, penyelarasan inti ke inti
- Metrologi Pemrosesan Pencitraan Digital dan Visi Memastikan Akurasi Tinggi
- Teknologi Baru yang Dikembangkan untuk Ukuran Lebih Kecil dan Klem Serbaguna yang Praktis
- Amplifikasi Multitahap, Pembesaran hingga 520X yang Menghasilkan Gambar yang Jelas
Specifications Fusion Splicer Skycom T-317S
| Applicable Fibers | G.651,G.652,G.653,G.655, G.657 SC/LC/FC connector (optional function) |
||
| Average Splice Loss | G.652: 0.02dB;G.651 : 0.01dB;G.655 : 0.04dB | ||
| Return Loss | ≥60dB | ||
| Typical splicing time | 9 seconds | ||
| Typical heating time | 25 seconds | ||
| Splicing Program | 50 preset and user programmable modes | ||
| Operating Language | Chinese,Korean,English,French,Indonesian,Italian,Portuguese,Spanish,Russian | ||
| Operating Conditions | -20ºC~+50ºC(operation temperature);≤90% RH(humidity); 0~5000m (altitude); ≤15 m/s(Windproof capability) | ||
| Power Supply | AC input | AC adaptor: 100~240V input voltage, 50/60Hz; | |
| DC input | 15V, 5A output voltage(DC) | ||
| Battery | Inner lithium battery: 11.1V, 5.2 AH, Up to 200 times splice and heat | ||
| Monitor | Dual cameras, 90°bi-directional view, 4.3 inches high resolution colorful LCD display | ||
| Fiber Image Magnification | X or Y Separately 520 times or Simultaneously 200 times | ||
| Estimated Splice Loss | Available | ||
| Cleaving angle detection | Available | ||
| Automatic setting | Camera | Available | |
| Forward motor | |||
| Tension Test | 1.96~2.25N | ||
| Storage of Splice Result | 6,000 groups of latest splice results | ||
| Splicing Model | Auto & Manual & Full Auto & Stepping | ||
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector) | ||
| Terminal | USB for Memorizing and Updating, Mini-USB | ||
| Dimensions | 120(W)*120(D)*130(H)mm | ||
| Weight | 1.42kg (without battery pack) | ||
Standard Package:
- Skycom T-317S
- Fiber Cleaver
- Fiber Stripper
- AC Adaptor (Charger)
- Battery
- Spare Electrodes
- Cooling Tray
- Quick Reference Guide
- Rubber-insulated wire stripper
- Carrying Case with Carrying Strap
