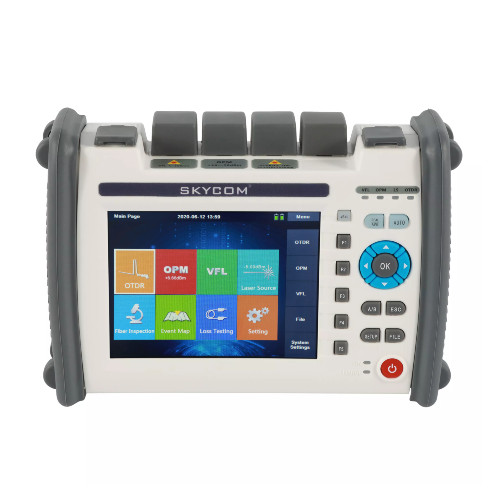

Skycom TOT-750 OTDR

Description

Skycom TOT-750 OTDR adalah alat pengukur serat optik komprehensif untuk memecahkan pengukuran berbagai parameter serat optik. Ini terutama MENGGUNAKAN fungsi OTDR dan memiliki fungsi pengukuran umum lainnya. Benar-benar tercermin: SATU MESIN, MENGUJI SEMUA!

Karakteristik parameter utama

• Tombol fisik yang sensitif terhadap sentuhan dan padat bekerja sama untuk pengalaman pengguna yang sempurna
• Sangat baik untuk pengukuran jarak pendek, Zona mati: 0,8m/4m
• Resolusi pengambilan sampel maksimum: 5cm
• Mendukung beberapa fungsi analisis pada hasil pengujian: Segmen return loss, Event point return loss, Perbandingan multi kurva, tangkapan layar cepat.
• Antarmuka data pengguna lengkap：USB（Tipe A）、MINI USB、kartu SD

Main Features

• Rugged design, light weight and easy operation
• <3m extra-short event dead zone
• Wavelength: 1310/1550nm
• Up to 32/30 dB High Dynamic Range
• Distance Range: 4,8,16,32,64,128,256km
• Pulse width: 10,30,80,160,320,640,1280,5120,1024ns
• USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
• Memory capacity >1000 traces
• Built-in friendly-environment lithium battery with high capacity for over 8 hours of operating life
• Display:640×480, 6.5 inch low-reflection TFT-LCD (touch screen)
• One year Warranty
• With Calibration Certificate and CE Certificate
• Support English & Spanish
• Can do OEM according to customer’s requirement: add your logo or language

Model Specifications

Model No.					Wave Length(nm)		Dynamic Range(dB)		Deadzone（M）
T-OT750-S-A28					1310/1550		28/26		0.8/4
T-OT750-S-A32					1310/1550		32/30		0.8/4
T-OT750-S-A35					1310/1550		35/33		0.8/4
T-OT750-S-A37					1310/1550		37/35		0.8/4
T-OT750-S-B26					1625		26		0.8/4
T-OT750-S-B32					1625		32		0.8/4
T-OT750-S-C26					1650		26		0.8/4
T-OT750-S-C32					1650		32		0.8/4
T-OT750-S-AB35					1310/1550/1625		35/33/32		0.8/4
T-OT750-S-AB42					1310/1550/1625		42/40/38		0.8/4
T-OT750-S-AC35					1310/1550/1650		35/33/32		0.8/4
T-OT750-M26					850/1300		22/26		02-Mei
T-OT750-SM28					1310/1550/850/1300		28/26/22/26		SM：0.8/4 MM：2/5
T-OT750-SM35					1310/1550/850/1300		35/32/22/26		SM：0.8/4 MM：2/5

Parameter Skycom TOT-750 OTDR

Pulse Width		SM			3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
		MM			850mm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us
					1300mm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us
Test Range		SM			100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km
		MM			850mm：500m，2km，5km，10km
					1300mm：500m，2km，5km，10km，20km，40km，80km
Minimum sampling resolution					0.05m
Maximum sampling point					256
Linearity					≤0.05dB/dB
Loss resolution					0.001dB
Distance resolution					0.01m
Distance accuracy					±(1m+Range×3×10-5+Sampling resolution) （Regardless of the refractive index）
Result Storage					>16G SD card(Maximum support 128G)，Store more than 100000 pieces of data
Complete user data interface					USB(Type A)、MINI USB、SD card
Monitor					5.6 “TFT LCD 640 * 480
Battery					7.4V/2500mAh X 2 lithium battery(Aviation certification)
Working temperature					Working temperature：-10℃~+50℃；Storage temperature：-20℃~+70℃
Relative humidity					≤95%(No condensation)
Size and weight					215×155×68mm/1.1kg(Including 2 batteries)
VFL					10KMS, 10mW，CW/2Hz
OPM					Option A：-10dBm~-70dBm; Option B：+23dBm~-50dBm
Laser source					Output：-5dBm±2dB，Frequency：CW/270Hz/1KHz/2KHz
GPS/GNSS					Customized
WIFI/Bluetooth					Customized

Standard Package:

• Hard Carrying Case
• OTDR with Battery Pack
• Calibration & Test Report
• SD Card
• FC & SC connectors
• Belt
• AC Adaptor
• Power Supply
• User Manual & Trace Manage Software (CD)
