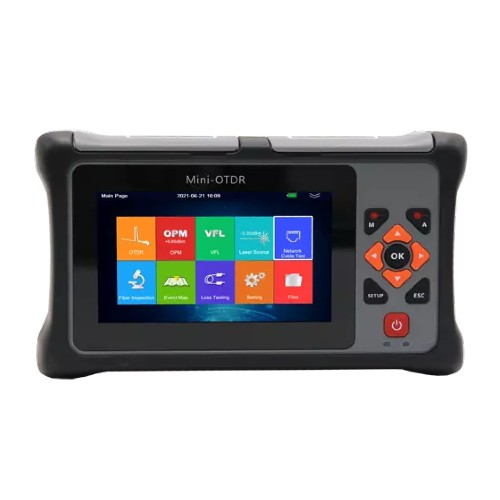

Skycom TOT560 Mini OTDR adalah sebuah alat berbasis optical-elektronik yang mampu membaca/mengukur karakteristik kabel optik.
Skycom TOT560 adalah berdasarkan radar optik, dengan menghantarkan denyutan sumber optik (biasanya laser) ke dalam satu masukan serat optik yang sedang diuji dan mengukur waktu yang diperlukan untuk dipantul balik pada penerima.
Fitur Skycom TOT560
- Layar sentuh kapasitif 4,3 inci dengan tampilan penuh, resolusi TFT 800×480
- IPX2 tahan air, IP5x tahan debu, tahan goncangan
- Power supply: Input Adaptor / Charger 100-240 VAC, 50Hz, baterai lithium
- Baterai lithium: 5200mAh/ 3.7v, waktu siaga > selama 10 jam
- Format File: Atau format file standar
- Memori:> 40000 hasil yang diuji
- Ukuran: 175x105x45mm, berat: 560g (termasuk baterai)
- Suhu kerja: -10 ~ + 55 ° C, suhu penyimpanan: -20 ~ + 80 ° C
Specifications Skycom TOT560 Mini OTDR
| Model No. | Wavelength | Dynamic Range | Max. Test Range | |||
| TOT560 | 1310/1550nm | 24/22dB | 80km | |||
| Measuring range | 100m、500m、2km、5km、10km、20km、40km、80km/90km | |||||
| Pulse width | 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1us 2us 5us 10us | |||||
| Sampling resolution | Minimum: 0.2m | |||||
| Event dead zone | < 2.0m | |||||
| Attenuation dead zone | < 7.0m | |||||
| The sampling point | 64,000 point | |||||
| Linearity | ≤0.05dB/dB | |||||
| Loss threshold | 0.01dB | |||||
| Loss resolution | 0.001dB | |||||
| Range resolution | 0.01m | |||||
| Range accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) （Excluding refractive index error） | |||||
| Memory | >40000 tested results | |||||
| File Format | Sor standard file format | |||||
| Data interface | 2 USB(Type A×1, Micro USB×1, SD card) | |||||
| Screen | 4.3-inch TFT-LCD (Standard distribution capacity touch screen) | |||||
| Power supply | Adapter /Charger input 100-240 VAC, 50Hz, lithium battery | |||||
| Battery | 3.7V/5200mAh, Standby time > 10 hours | |||||
| Temperature | Working temperature：-10℃~+55℃； | |||||
| Storage temperature：-20℃~+80℃ | ||||||
| Humidity | ≤95%（No condensation） | |||||
| Size/Weight | 175x105x45mm / 0.56kg（Contain the battery） | |||||
| OPM | Type A：+10dBm~-70dBm;Type B：+26dBm~-50dBm | |||||
| VFL | 10mW，CW/2Hz | |||||
| LS(Laser Source) | The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz | |||||
| Network Cable test | Support network wire sequence testing and wire alignment | |||||
Accessories standard
- FC adaptor
- Power adapter
- Lithium battery
- USB cable
- Quick guide
- Portable package
