Description

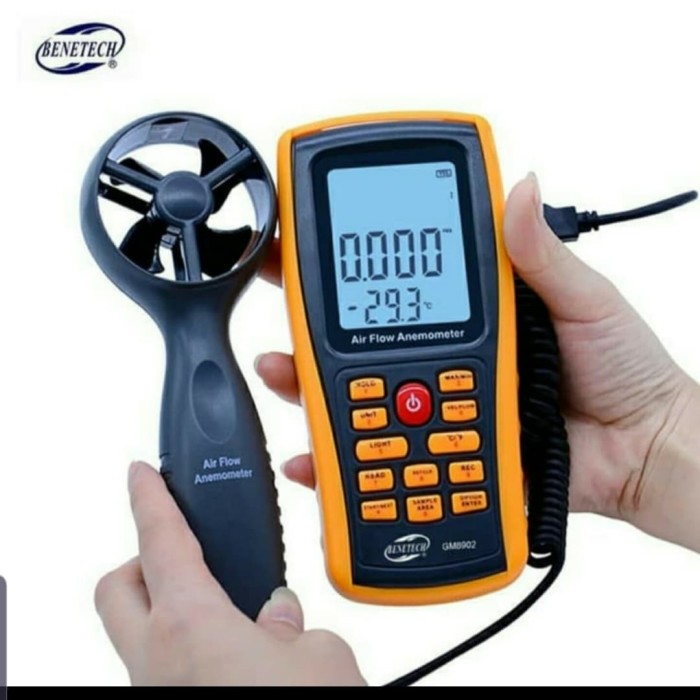

Anemometer Data Logger Benetech GM8902 adalah Alat pengukur kecepatan angin, suhu udara, dengan koneksi USB ke PC untuk pengolahan data (CD software termasuk)
Fitur Benetech GM8902:
- Pengukuran kecepatan angin, suhu dan aliran
- Konversi satuan kecepatan angin, suhu dan aliran
- Pengukuran kecepatan angin maksimum dan minimum
- Pengukuran 2/3 Vmax dan aliran angin rata-rata
- Fungsi:
- Penyimpanan, penyimpanan, dan penghapusan data
- Indikasi baterai rendah
- Mati otomatis (matikan secara otomatis jika tidak ada operasi lebih lanjut selama 10 menit)
- Memori 500 catatan
- Lampu latar
- Menghubungkan ke PC dengan kabel USB
- Peringatan penekanan tombol audio
- Layar LCD besar
Specifications Benetech GM8902 Air Flow Anemometer Data Logger
| 1. Wind Velocity Range | ||||||||||
| Unit | Wind Velocity | Resolution | Lowest Point of start value | Accouracy | ||||||
| m/s | 0.0-45.0 | 0.001 | 0.3 | ±3%±0.1 | ||||||
| Ft/min | 0.0-8800 | 0.01/0.1/1 | 60 | ±3%±20 | ||||||
| Knots | 0.0-88.0 | 0.01/0.01 | 0.6 | ±3%±0.2 | ||||||
| Km/h | 0.0-140.0 | 0.001 | 1 | ±3%±0.4 | ||||||
| Mph | 0.0-100 | 0.001/0.01 | 0.7 | ±3%±0.2 | ||||||
| 2. Wind flow range | CMM | 0-999900m³ /min | ||||||||
| CFM | 0-999900 ft³ /min | |||||||||
| Unit | Range | Resolution | Area | |||||||
| CFM(FT³ /MIN) | 0-999900 | 0.001-100 | 0.001-9999 | |||||||
| CMM(M³/MIN) | 0-999900 | 0.001-100 | 0.001-9999 | |||||||
| 3. Unit Conversatin | ||||||||||
| m/s | Ft/min | Knots | Km/h | Mph | ||||||
| 1m/s | 1 | 196.87 | 1.944 | 3.6 | 2.24 | |||||
| 1ft/min | 0.00508 | 1 | 0.00987 | 0.01829 | 0.01138 | |||||
| 1knots | 0.5144 | 101.27 | 1 | 1.8519 | 1.1523 | |||||
| 1km/h | 0.2778 | 54.69 | 0.54 | 1 | 0.6222 | |||||
| 1mph | 0.4464 | 87.89 | 0.8679 | 1.6071 | 1 | |||||
| 4.Air Temperature Range | ||||||||||
| Wind Temperature | ||||||||||
| Unit | Scale | Resolution | Accuracy | |||||||
| ℃ | 0.0-45.0 | 0.1 | ±1.0℃ | |||||||
| ℉ | 32.0-113.0 | 0.1 | ±1.8℉ | |||||||
| 5. Operation Conditions | ||||||||||
| Temperature | Humidity | |||||||||
| Host | 0-50℃ (32℉~122℉) | ≤80% RH | ||||||||
| Fan | 0-60℃ (32℉~140℉) | |||||||||
| 6. Storage Conditions | ||||||||||
| Temperature | -40℃~60℃ (-40℉~140℉) | |||||||||
| Humidity | ≤80%RH | |||||||||
| 7、Power supply | AAA 1.5V Alkaline battery *4 | |||||||||
| 8. Low battery indicating | 4.4V±0.2V | |||||||||
| 9、Stand by current | ≤2uA | |||||||||
| 10. Operating Current | ≤18mA | |||||||||
| 11. Battery use life | 20H (Continuous Use ) | |||||||||
| 12. Dimensions: | Meter | 77x36x164mm | ||||||||
| Vane | 65x29x172mm | |||||||||
| 13. Net Weight | 330G (Not Included Battery ) | |||||||||
Accessories
- CD*1
- 1.5V AAA battery*4
- Instructions*1
- PP box*1
- Color box*1
- Charging Cable*1
- Handle*1
- Host*1
Benetech GM8902 Anemometer Data Logger >>>>> Spec sheet (PDF)
