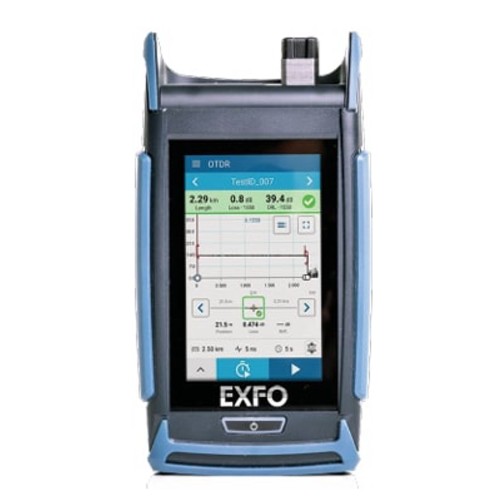

Description
OTDR Exfo AXS-115 adalah alat uji optik portabel yang digunakan oleh teknisi jaringan telekomunikasi untuk mengukur, memvalidasi, dan menemukan gangguan pada kabel serat optik.
Sebagai perangkat “genggam”, Exfo AXS-115 ini dirancang agar ringan, tahan banting, dan memiliki masa pakai baterai yang baik, membuatnya ideal untuk pekerjaan lapangan di luar ruangan.
Fitur Exfo AXS-115
- Tangguh dan ultra-portabel, dilengkapi layar sentuh luar ruangan 4 inci dengan visibilitas tinggi
- Otonomi baterai sepanjang hari
- Jangkauan dinamis 32/30 dB
- Zona mati pendek: zona mati kejadian (EDZ) / zona mati redaman (ADZ) 0,8/3,5 m
- Peta tautan internal yang menyederhanakan interpretasi jejak OTDR
- Panjang gelombang ganda dengan deteksi macrobend otomatis
- Pemeriksa daya dan sumber daya in-line
- Pelaporan PDF internal
APLIKASI
- Instalasi dan pemecahan masalah jaringan FTTx
- Karakterisasi jaringan akses
- Pengujian jaringan televisi kabel (CATV), serat optik koaksial (HFC) hibrida
- Instalasi FTTA, sistem antena terdistribusi (DAS).
Spesifikasi OTDR Exfo AXS-115
| TECHNICAL SPECIFICATIONS | ||||
| Wavelength (nm) | 1310 ± 30/1550 ± 30 | |||
| Dynamic range (dB) | 32/30 | |||
| Event dead zone (m) | 0.8 | |||
| Attenuation dead zone (m) | 3.5 | |||
| Distance range (km) | 0.065 to 200 | |||
| Pulse width (ns) | 3 to 20 000 | |||
| Linearity (dB/dB) | ±0.05 | |||
| Loss threshold resolution (dB) | 0.01 | |||
| Loss resolution (dB) | 0.001 | |||
| Sampling resolution (m) | 0.04 to 5 | |||
| Sampling points | Up to 256 000 | |||
| Distance uncertainty (m) | ±(0.75 + 0.0025% × distance + sampling resolution) | |||
| Reflectance accuracy (dB) | ±2 | |||
| GENERAL SPECIFICATIONS | ||||
| Size (H × W × D) | 171 mm × 93 mm × 48 mm (6 3/4 in × 3 11/16 in × 1 7/8 in) | |||
| Weight (with battery) | 0.5 kg (1.1 lb) | |||
| Display | 4 in (101.6 mm) touchscreen, 800 × 480 TFT, portrait and landscape view | |||
| Interfaces | One USB-C port | |||
| Storage | 8 GB internal memory (10 000 OTDR traces, typical) | |||
| Results format | PDF report on the unit .sor trace as per Telcordia (Bellcore) | |||
| Battery | Rechargeable lithium-polymer battery, USB type-C charging port connector | |||
| Battery autonomy | >10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 | |||
| Temperature | Operating Storage |
–10 °C to 45 °C (14 °F to 113 °F) | ||
| –40 °C to 70 °C (–40 °F to 158 °F) f | ||||
| Relative humidity | < 93 % non-condensing | |||
| Data management | FastReporter 3 | |||
| Adapters | Multiple changeable adapters to fit any optical connectors: SC, FC, LC, and more | |||
| IN-LINE SOURCE | ||||
| Output power (dBm) | –7 | |||
| Modulation | 1 kHz + Blink, 2 kHz + Blink | |||
| IN-LINE POWER CHECKERÂ | ||||
| Power range (dBm) | –60 to 23 | |||
| Power uncertainty (dB) | ±0.5 | |||
| Calibrated wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 | |||
| Selectable wavelengths (nm) | 1310, 1490, 1550, 1577, 1625, 1650 | |||
| Tone detection | CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz, 1 kHz + Blink, 2 kHz + Blink | |||
