Description

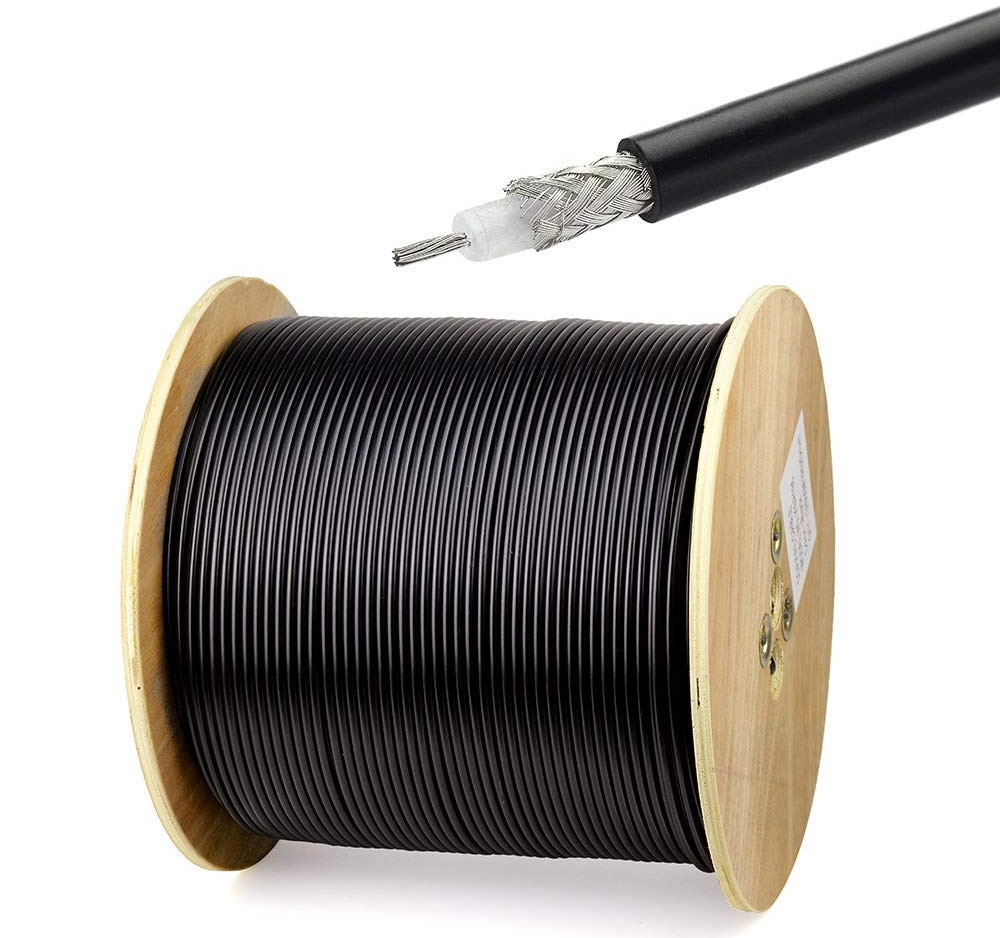

Kabel Coaxial Belden RG58-8219 ini memiliki impedansi serat dalam 50 ohm. cocok digunakan untuk aplikasi: Repeater, TV Transmitter, Amateur Radio Transmitter, Orari Radio, dll.
Aplikasi yang Cocok: Komunikasi antena nirkabel point-to-point dan point-to-multipoint; Mikrofon nirkabel, Radio Dua Arah, Radio Amatir (Ham), FM Daya Rendah, GPS, RFID (Identifikasi Frekuensi Radio)
Belden RG58 A/U 8219 50 OHm
Specifications Belden RG58 8219 A/U
| Manufacturer | Belden | |
| Coaxial Cable Type | RG58 A/U | |
| Coaxial Cable Series | 8219 | |
| Conductor Material | Tinned Copper | |
| Conductor Size AWG | 20 AWG | |
| External Diameter | 4.93 mm | |
| Impedance | 53.5 ohm | |
| Jacket Color | Black | |
| Jacket Material | PVC ( Polyvinyl Chloride) | |
| No. of Strands x Strand Size | 19 x 32AWG | |
| Reel Length ( Imperial) | 500 ft | |
| Reel Length ( Metric) | 152.4 m | |
| SVHC | No SVHC ( 20-Jun-2013) |
Standards and Compliance
- Environmental Suitability: Outdoor – Aerial, Indoor, UV Resistance, Aerial – Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1685 UL Loading, UN ECE R118.02
- NEC / UL Compliance: CM
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): P-MSHA-SC-182/5
Kabel Coaxial Belden RG58-8219 A/U 50 Ohm >>>>>> Spec sheet (PDF)
