Description

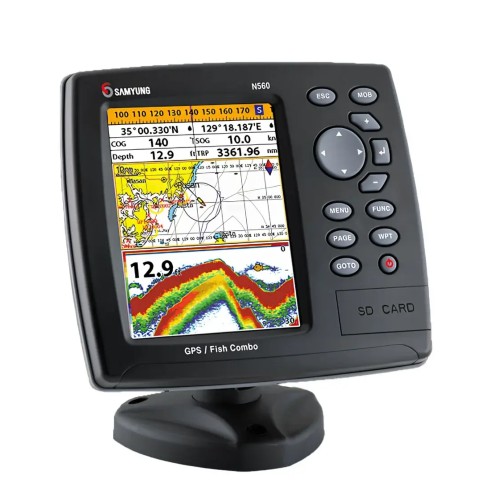

Samyung N560/NF560 adalah Plotter grafik GPS berukuran 5,6” yang dibuat dengan presisi dan memiliki penerima berkinerja tinggi.
Tahan Air Penuh IPX7
DGPS(WAAS, MSAS, EGNOS)
Simpan gambar grafik pada memori internal (128M)
Simpan data internal pada kartu SD
Lihat dan cetak data tersimpan pada kartu SD
Fitur Samyung N560/NF560
- LCD TFT beresolusi tinggi 5,6 inci
- Lampu latar LED yang dapat disesuaikan 10 langkah
- Antena GPS internal/eksternal
- NAVIONICS® GOLD menggunakan kartu SD
- Memori internal 128 MB dan peta standar Samyung bawaan
- Tombol tersendiri untuk navigasi GOTO dan MOB
- Antarmuka NMEA0183 (AIS, NAVTEX, DSC, dll.)
- Beberapa bahasa tersedia termasuk: Inggris, Cina, Rusia, Thailand, Melayu, dll.
Spesifikasi Samyung N560/NF560
| Model | N560 | NF560 | F560 | ||
| Size | 164 mm(H) x 183 mm(W) x 74 mm(D) | ||||
| Display | 5.6”diagonal, TFT color, 480 x 640 pixels | ||||
| Supply voltage | 10 to 34 V DC | ||||
| Supply current | 13.8 V, 0.9A min – no backlighting. | ||||
| 2A max – full backlighting. | |||||
| Operating temp. | -10 to 50 C | ||||
| Alarms | Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels. | ||||
| Chart card | NAVIONICS GOLD | ||||
| User card | SD Card | ||||
| Waypoints | Up to 5000, with default or userdefined alphanumeric names up to eight characters. | ||||
| Routes | 100 Routes, with up to 100 points each | ||||
| Tracks | By time or distance, 10 track of 5000 points | ||||
| Chart datums | 216 Chart datums (see next page) | ||||
| One user-defined map shift. | |||||
| Chart scale | 0.2 to 500 nm for chart (chart dependent) | ||||
| down to 0.01 nm in plotter mode. | |||||
| NMEA | NMEA 0183 4800, 9600, 38400 baud NMEA 2000 | ||||
| Depth range | – | 0m to 1,500m | |||
| Sonar output | – | Up to 600W RMS | |||
| Daul frequency:50/200kHz | |||||
| Temperature | – | Range 0 to 37.7 C | |||
| Resolution of 0.1 C unit | |||||
Paket termasuk
